Defensive barrier pro unit overview
Defensive Barrier Pro 358 Mesh + 4.0 mm Panel – BMP Rapid-Deployed Security Wall
- Product Name: Defensive Barrier Pro
- Brand: BMP
- Side Panel Wire: 4.0 mm (8 Gauge)
- Side Panel Mesh: 76.2 mm × 76.2 mm (3″ × 3″)
- Side Panel Shape: Right angle trapezoid
- Side Panel Size: 3 m (H) × 1.2 m (W)
- Anti-climb Panel: 358 mesh: 76.2 mm × 12.7 mm (3″ × 0.5″)
- Anti-climb Wire: 4.0 mm (8 Gauge)
- Anti-climb Size: 3 m (H) × 2.12 m (L)
- Back Panel Spiral Pins: 6 × 0.9 m spiral wires + 3 × 0.9 m pins
- Front Panel Spiral Pins: 6 × 3 m spiral wires + 3 × 3 m pins
- Geotextile: Pre-installed, non-woven, high-tensile
- Foundation Unit: 2.12 m (L) × 1.2 m (W) × 0.9 m (H), 2 cells
- U-Channel Covers: 3 steel channels with 21 sets of bolts & nuts
- Color Options: Galvanized silver (standard), green/black (optional)
- HS Code: 7308900000
- Reference FOB Price: USD 32.00 / unit (2-cell system)
Introduction
BMP Defensive Barrier Pro is a cutting-edge, rapid-deployment security barrier system engineered to meet extreme security needs in civil, military, event, and infrastructure defense applications. This system combines 358 anti-climb welded mesh, 4.0 mm trapezoid side panels, spiral wire connectors, and pre-assembled geotextiles into a unified protective wall, deployable without ground preparation or special tools.
Designed for speed, strength, and flexibility, Defensive Barrier Pro offers an ideal solution for short-term or emergency perimeter protection, while being robust enough to resist intrusion, ballistic threats, and vehicle impacts.
 |
 |

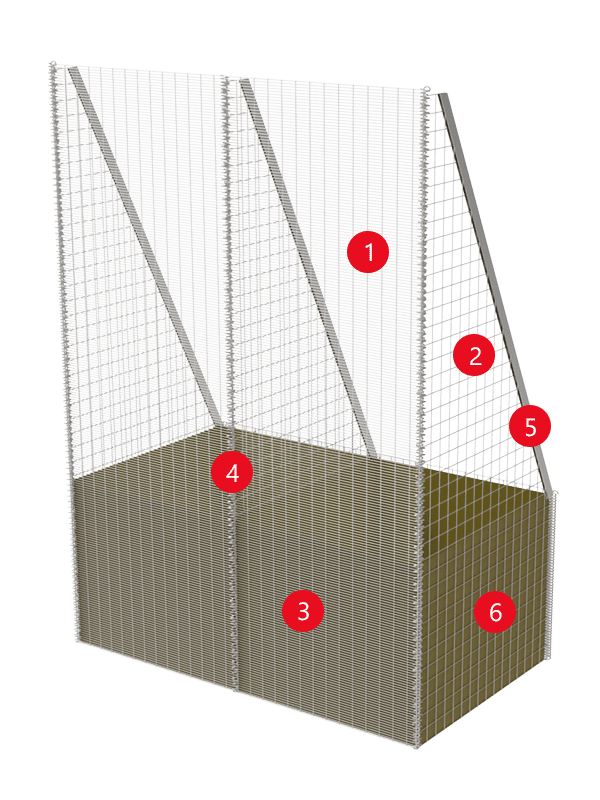

⚙️ BMP Defensive Barrier Pro Components – Line-by-Line
- Side Panel Wire Diameter: 4.0 mm
- Side Panel Mesh Size: 76.2 mm × 76.2 mm
- Panel Shape: Right angle trapezoid
- Panel Dimensions: 3 m high × 1.2 m wide
- 358 Mesh Panel Wire: 4.0 mm
- 358 Mesh Opening: 76.2 mm × 12.7 mm
- 358 Panel Size: 3 m high × 2.12 m long
- Spiral Wires & Pins:
- 6 × 3 m spirals & 3 × 3 m pins (front panel connection)
- 6 × 0.9 m spirals & 3 × 0.9 m pins (back panel connection)
- Geotextile: Pre-assembled, prevents soil leakage
- Defensive Unit Size: 2.12 m × 1.2 m × 0.9 m (2-cell unit)
- Protective U-Channel: 3 pieces, 21 bolt sets
- Surface Treatment: Hot-dip galvanized, optional coating
🌟 BMP Defensive Barrier Pro Benefits
🧱 Extremely Strong
The integration of 358 anti-climb mesh and welded side panels blocks all illegal intrusion attempts by individuals or vehicles.
🚫 Ground-Free Installation
Deploy it directly on any terrain—no foundation or prep work required.
⚡ Rapid Deployment
Unfold, stretch, connect pins—structure is ready within minutes. No special tools or labor skills are needed.
🪶 Lightweight but Rigid
Fills easily with sand, soil, gravel or stone. Once filled, it becomes immovable and robust.
🔒 Labor Safety First
Steel U-channels shield sharp metal edges, protecting workers from injury.
🔄 Reusable and Flexible
Can be relocated, reshaped, or disassembled after use.
📦 BMP Defensive Barrier Pro – Packaging & Delivery
- Defensive Barrier Pro units are folded flat or pre-connected per shipment.
- Spiral wires and pins are pre-installed where possible.
- Each side panel includes 1 U-channel and 7 bolt sets.
- All hardware packed neatly in boxes or cartons.
- Optional pallet packaging for overseas shipping.
- Standard container:
- 20’ container: ~100 units
- 40’ container: ~180–200 units
📌 BMP Defensive Barrier Pro Applications
- Event & Stadium Security – Rapidly establish perimeters for sports, concerts, or political events.
- Police & Riot Control – Barriers can be deployed swiftly during crowd control situations.
- Oil & Gas Facility Protection – Block hostile vehicle access and explosion impact.
- Military Checkpoints – Ideal for forward operation bases or embassy reinforcement.
- Urban Infrastructure – Protect bridges, substations, tunnels from sabotage.
Gallery

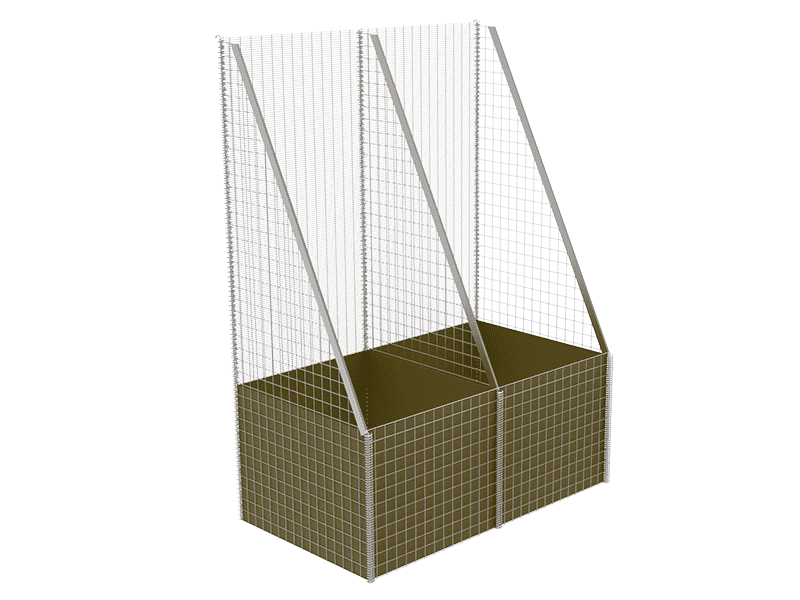

Defensive barrier pro unit overview

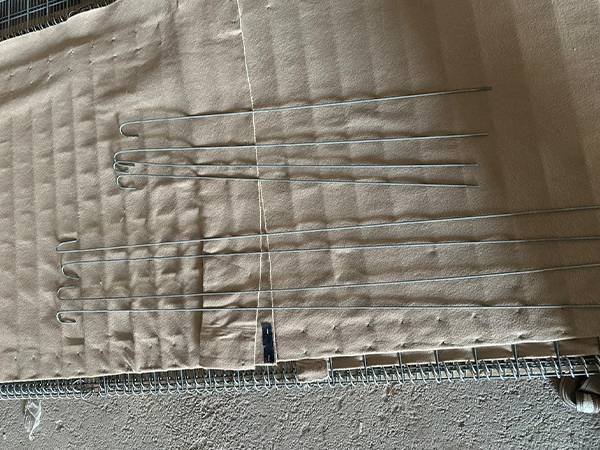

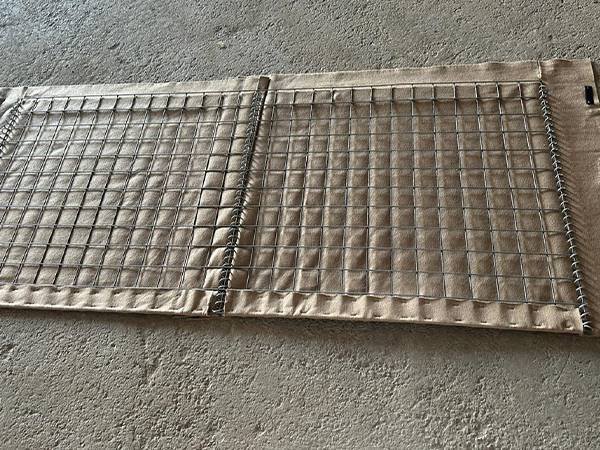

Back panel
Spiral coil wire
Geotextile

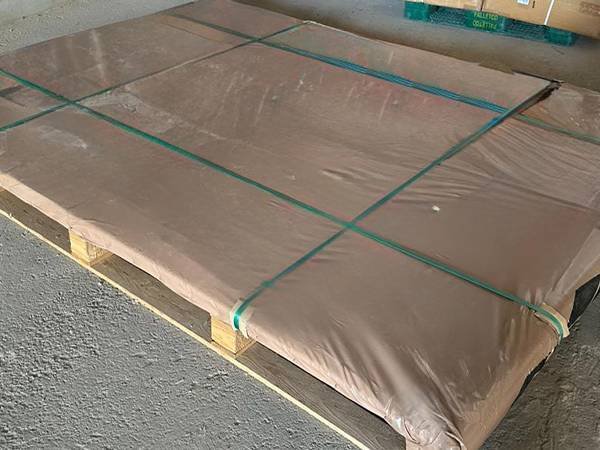

Optional pallet package
🇶🇦 Feedback from Qatar
“During World Cup security planning, we deployed BMP’s Defensive Barrier Pro for temporary perimeter setups around major event zones. Setup was quick and secure, no anchoring required. It withstood crowds, high winds, and traffic stress. Logistics team was also impressed by the compact shipping configuration.”
– Majed H., Event Infrastructure Coordinator, Doha
⚠️ Conditions to Consider Before Use
- Filler Materials: Sand, soil, gravel, or crushed stone all work well—avoid debris or weak soil.
- Weather: Use geotextile for fine material if exposed to wind/rain.
- Stability: Compact fill in layers to avoid settling gaps.
- Connection Integrity: Always install spiral wires and pins properly.
- Labor Safety: Wear gloves and eye protection due to mesh edges.
❓ BMP Defensive Barrier Pro FAQs
Q1: How many people are needed to install a unit?
A1: Two workers can install a unit in under 10 minutes.
Q2: Can I customize height or length?
A2: Yes, BMP offers modular variations upon request.
Q3: What filler is best for vehicle protection?
A3: Use crushed stone or compacted sand for maximum resistance.
Q4: Are these barriers reusable?
A4: Yes, they can be collapsed and redeployed up to 10+ cycles.
Q5: Does it meet international standards?
A5: All materials conform to ISO 9001 and ASTM A974 standards.
🏁 Conclusion – Why Choose BMP Defensive Barrier Pro?
BMP Defensive Barrier Pro delivers a balance of speed, strength, safety, and reusability unmatched in the temporary barrier market. Whether you’re guarding a high-risk urban zone or managing crowd control at a public event, this barrier ensures maximum protection with minimal deployment time.
Built on decades of engineering experience, BMP’s system is already protecting infrastructure and events in Qatar, Europe, and Asia. Fully certified, cost-effective, and easy to manage, Pro is your smartest line of defense.
📩 Contact BMP today to request detailed drawings, RFQs, or shipment scheduling.
