X Tend Cable Mesh | 304/316 SS Flexible Rope Net
- Model No.: Rope Mesh
- Surface Treatment: Electro Galvanized, Polished
- Type: Stainless Steel Plain Wire Mesh
- Weave Technique: Plain Weave
- Technique: Woven
- Processing Service: Cutting
- Feature: Corrosion Resistance
- Transport Package: Paper tube inside, then waterproof paper packing
- Specification: Conventional, can be customized
- Trademark: BMP
- Origin: Hebei, China
- HS Code: 73144900
- Production Capacity: 10,000 rolls per week
- Packaging Size: 100.00 cm × 100.00 cm × 50.00 cm
- Package Gross Weight: 1000.000 kg
- Price Range: $9.28 – $39.22 per m²
Introduction

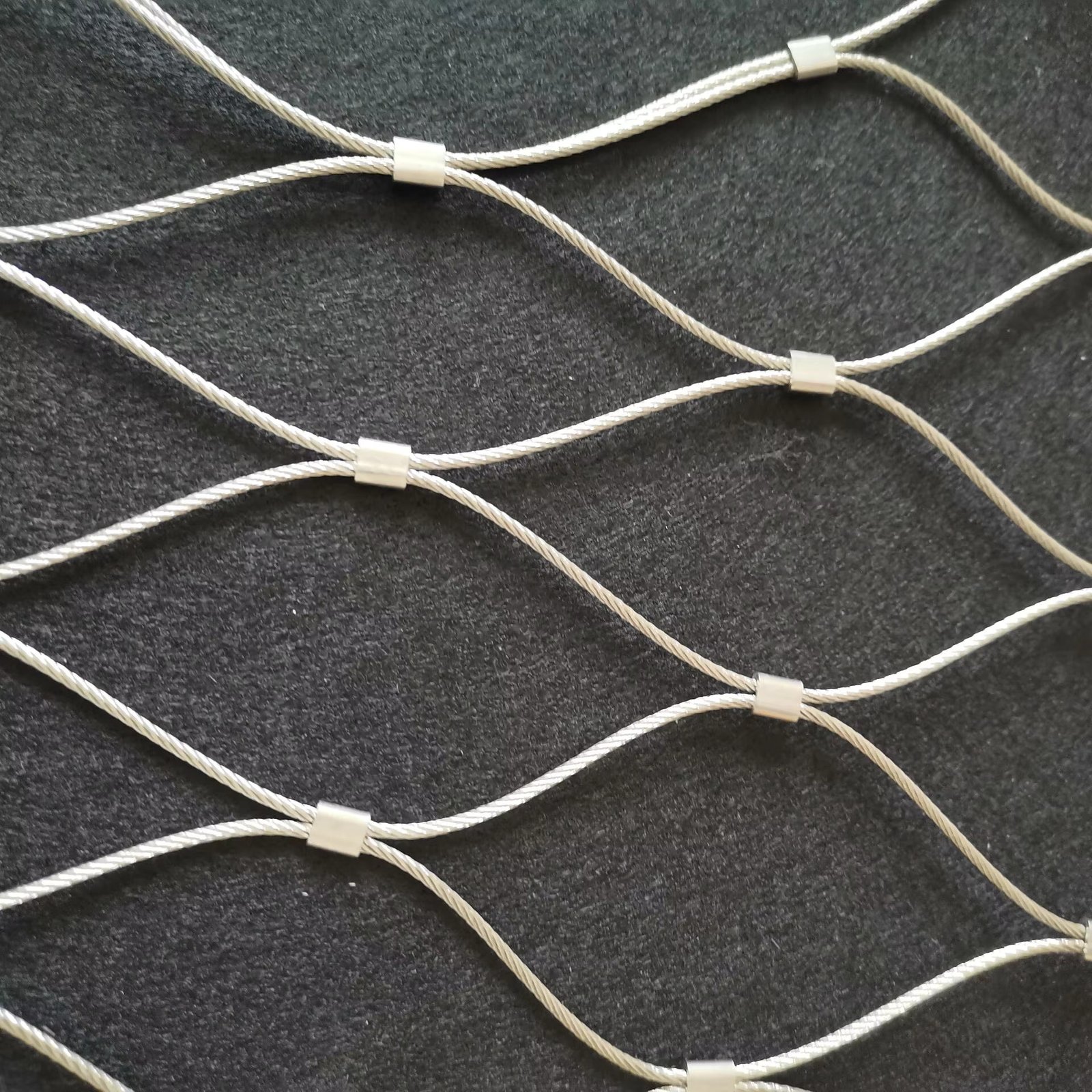

BMP’s X Tend Cable Mesh is a premium architectural and safety mesh made from stainless steel wire ropes, crafted into flexible net structures. Whether you’re securing a zoo, installing a bridge barrier, or creating a façade, this mesh combines strength, transparency, and elegance.
It uses a 3D flexible pattern that bends under load but never breaks. You can install it in horizontal, vertical, or 3D spatial directions. The ferrules (fittings) may be stainless steel or aluminum depending on your request.

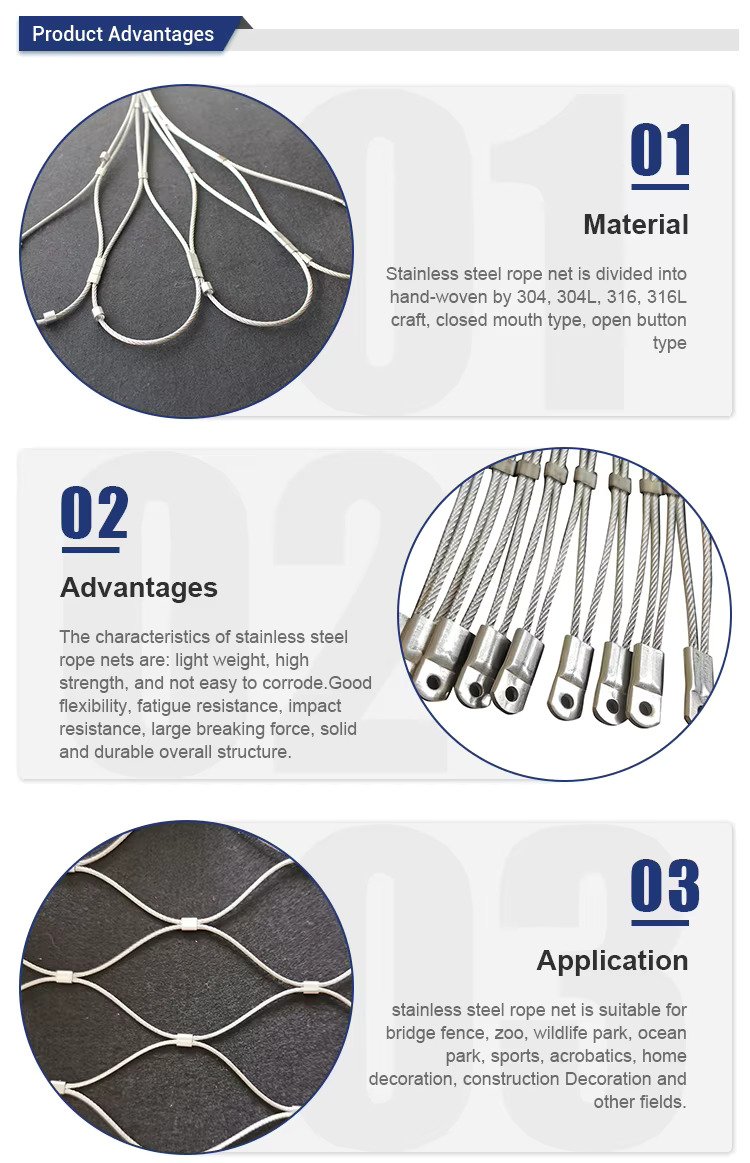

🔷 BMP | Material & Mesh Structure
- Wire Material: Stainless Steel AISI 304, 316, or 316L
- Structure: 7×7 or 7×19 (other types upon request)
- Ferrule Material: Aluminum or Stainless Steel
- Opening Width (OW): 20 mm – 200 mm
- Mesh Orientation: Horizontal / Vertical
- Edge Pattern: Standard / Reinforced (custom downloadable)
- Weave Type: Ferrule or Knotted
- Mesh Height/Width: Custom Cut-to-Size
🔷 BMP | Advantages of X Tend Cable Mesh
- ✅ Extremely Strong – Withstands up to 1,570 lbs (714 kgf)
- ✅ Corrosion Resistant – Performs in saltwater, snow, or heat
- ✅ Soft but Durable – Doesn’t harm animals or hands
- ✅ Visual Transparency – Doesn’t block view or light
- ✅ Eco-Friendly – 100% recyclable stainless steel
- ✅ Design-Friendly – Easily forms curved, angled, and cylindrical shapes
🔷 BMP | Applications of X Tend Cable Mesh
- ✅ Zoo Mesh (aviaries, monkey enclosures, tiger cages)
- ✅ Balconies and Bridge Railings
- ✅ Playground Safety Nets
- ✅ Façade Decoration and Green Wall Supports
- ✅ Elevator Shaft Nets
- ✅ Staircase Fall Protection
- ✅ Public Anti-Climb Barriers
- ✅ Airport Terminals and Stadiums
🔷 BMP | Technical Specification Table
| Code | Ø (mm) | OW (mm) | OH (mm) | Break Force (lbs) |
|---|---|---|---|---|
| BMP01 | 1.0 | 20 | 35 | 160 |
| BMP02 | 1.0 | 25 | 43 | 160 |
| BMP03 | 1.0 | 30 | 52 | 160 |
| BMP04 | 1.0 | 35 | 61 | 160 |
| BMP05 | 1.0 | 40 | 69 | 160 |
| BMP06 | 1.0 | 50 | 87 | 160 |
| BMP07 | 1.0 | 60 | 104 | 160 |
| BMP08 | 1.0 | 70 | 121 | 160 |
| BMP09 | 1.0 | 80 | 139 | 160 |
| BMP10 | 1.5 | 25 | 43 | 360 |
| BMP11 | 1.5 | 30 | 52 | 360 |
| BMP12 | 1.5 | 35 | 61 | 360 |
| BMP13 | 1.5 | 40 | 69 | 360 |
| BMP14 | 1.5 | 50 | 87 | 360 |
| BMP15 | 1.5 | 60 | 104 | 360 |
| BMP16 | 1.5 | 70 | 121 | 360 |
| BMP17 | 1.5 | 80 | 139 | 360 |
| BMP18 | 1.5 | 100 | 173 | 360 |
| BMP19 | 1.5 | 120 | 208 | 360 |
| BMP20 | 1.5 | 140 | 242 | 360 |
| BMP21 | 1.5 | 160 | 277 | 360 |
| BMP22 | 1.5 | 180 | 312 | 360 |
| BMP23 | 1.5 | 200 | 346 | 360 |
| BMP24 | 2.0 | 40 | 69 | 650 |
| BMP25 | 2.0 | 50 | 87 | 650 |
| BMP26 | 2.0 | 60 | 104 | 650 |
| BMP27 | 2.0 | 70 | 121 | 650 |
| BMP28 | 2.0 | 80 | 139 | 650 |
| BMP29 | 2.0 | 100 | 173 | 650 |
| BMP30 | 2.0 | 120 | 208 | 650 |
| BMP31 | 2.0 | 140 | 242 | 650 |
| BMP32 | 2.0 | 160 | 277 | 650 |
| BMP33 | 2.0 | 180 | 312 | 650 |
| BMP34 | 2.0 | 200 | 346 | 650 |
| BMP35 | 3.0 | 50 | 87 | 1570 |
| BMP36 | 3.0 | 60 | 104 | 1570 |
| BMP37 | 3.0 | 70 | 121 | 1570 |
| BMP38 | 3.0 | 80 | 139 | 1570 |
| BMP39 | 3.0 | 100 | 173 | 1570 |
| BMP40 | 3.0 | 120 | 208 | 1570 |
| BMP41 | 3.0 | 140 | 242 | 1570 |
| BMP42 | 3.0 | 160 | 277 | 1570 |
| BMP43 | 3.0 | 180 | 312 | 1570 |
| BMP44 | 3.0 | 200 | 346 | 1570 |
📝 Full table available on request (over 40 mesh codes from 1.0–3.0mm)
🔷 BMP | How to Order X Tend Cable Mesh
Format:
Material – Product No. – Orientation – Edge Style – Piece Size
Example:
AISI 316 – FSCM28 – Vertical – Reinforced Edge – 2.4m × 8m
🔷 BMP | What Conditions Require This Fence?
| Application Environment | Recommendation |
|---|---|
| Coastal area | Use 316 or 316L stainless steel |
| Animal fencing (zoos, aviary) | Small aperture (under 70×121 mm) |
| Public stairs, balconies | Use ferrule type with reinforced edge |
| 3D art structure or façade | Use flexible vertical installation |
| Bridges & Airports | High-strength mesh (≥2.0 mm, 650 lbs↑) |
🔷 BMP | Packing & Delivery
- 📦 Rolled into bundles with edge protection
- 📜 Label with size, type, quantity, HS code
- 📤 Wooden case or steel rack for heavy orders
- 🛫 Supports sea/air shipping. Ready in 7–15 days
- 🧰 Includes optional tension hardware or drawings
🔷 Customer Feedback from Qatar“Our experience with BMP’s X Tend Cable Mesh exceeded expectations. We used it for our shopping mall staircase and rooftop garden. It was easy to install, and the quality was superior. Clean finish, zero rust, and our architects loved the transparent, flexible appearance. Highly recommend BMP.”
– Sultan A., Project Engineer, Doha
🔷 FAQ – X Tend Cable Mesh
Q1: Is the mesh flexible?
Yes, it can bend into 3D curves without breaking.
Q2: Does the mesh come with ferrules?
Yes, choose between ferruled or knotted types.
Q3: How long is the lead time?
Usually 7–10 working days.
Q4: Can I get a free sample?
Yes, BMP offers free mesh samples.
Q5: Is this mesh climb-proof?
Yes, it is anti-climb, especially with tight apertures.
🔷 Conclusion – Why Choose BMP’s X Tend Cable Mesh
BMP offers you a stainless steel mesh that’s flexible, safe, strong, and beautiful. Whether it’s protecting people, animals, or architecture, our X Tend Cable Mesh does the job better, cleaner, and longer than traditional fencing.
📞 Contact BMP today to customize your order.
🎯 Let your fence be a feature, not a flaw.
