Barbed wire fence
- Wire Gauge: 12×12 BWG
- Barbed Distance: 5″
- Barb Length: 10 mm
- Coil Outside Diameter: 200 mm
- Color: Silver
- Wire Diameter: 1.5–3.0 mm
- Barb Distance: 7.5–15 cm
- Coil Weight: 20–25 kg per coil
- Zinc Weight: 15g–60g/m²
- Transport Package: Roll
- Specification: 12 gauge
- Trademark: BMP
- Origin: China
- HS Code: 72172000
- Production Capacity: 1000 rolls
- Price: $650–$780 per ton
Category：Barbed Wire, Product
Introduction
Barbed wire fence is one of the most straightforward and effective security fencing systems used worldwide. Built for strength, deterrence, and cost-effectiveness, barbed wire fences are a reliable choice for property owners who take security seriously. Whether it’s for farmland, industrial perimeters, or high-security sites like airports and prisons, barbed wire fencing gets the job done—without compromise.
Main Features Barbed wire fence
1. High-Security Performance
Barbed wire fence acts as a physical and psychological barrier. The sharp barbs are designed to deter and stop would-be intruders, making climbing or cutting extremely risky. This is why it’s used on the top of walls, fences, and gates in sensitive locations.
2. Durable Materials
- Hot-dip galvanized barbed wire: Provides excellent rust and corrosion resistance, ideal for harsh weather.
- PVC coated barbed wire: Offers extra protection and a more attractive finish, often used in residential areas and gardens.
3. Versatility in Application Barbed wire fence
Barbed wire can be installed in 3, 4, 5, or even 6-line configurations to match the required security level. It can also be combined with razor wire or chain link fencing for enhanced protection.
4. Practical for Livestock and Land Protection
Besides security, barbed wire fencing is widely used in agriculture. It keeps livestock contained and predators out, protecting valuable assets with minimal maintenance.
Technical Specifications Barbed wire fence
- Strand Wire Diameter: 2.5 mm – 3.0 mm
- Barb Wire Diameter: 1.5 mm – 2.0 mm
- Barb Spacing: 5 cm – 10 cm
- Roll Diameter: 450 mm – 960 mm
- Fence Height (below barbed wire): Minimum 180 cm for high-security zones
Materials:
- Hot-dip galvanized wire
- PVC coated wire
- Stainless steel wire (for chain link fencing)
Chain Link Fencing (often combined):
- Opening: 25 mm – 50 mm
- Wire Diameter: 3.0 mm – 5.0 mm
- Width: 1.5 m – 2.5 m
Barbed Wire Fence Specifications
| Parameter | Specification |
|---|---|
| Strand Wire Diameter | 1.6 mm – 3.0 mm (approximately 14 – 10 gauge) |
| Barb Wire Diameter | 1.6 mm – 2.0 mm |
| Barb Spacing | 75 mm – 150 mm (3″ – 6″) |
| Barb Length | 15 mm – 20 mm |
| Barb Type | 2-point (single barb) or 4-point (double barb) |
| Twist Type | Conventional twist or reverse twist |
| Coating Options | – Hot-dip galvanized (Class I, II, III) – Electro-galvanized – PVC coated (0.4 mm – 0.6 mm thickness) |
| Roll Length | 100 m – 800 m (varies by wire diameter and weight) |
| Roll Weight | 15 kg – 50 kg |
| Approximate Length per Kg | Varies by gauge and barb spacing. For example: – 12 × 12 gauge with 3″ spacing: ~6.06 m/kg – 12 × 14 gauge with 4″ spacing: ~7.91 m/kg |
| Post Spacing | 2.5 m – 5.0 m (8 ft – 16 ft), depending on terrain and application |
| Post Types | – Wood (treated or untreated) – Steel (T-posts, U-posts) – Concrete |
| Fence Height | Commonly 1.2 m – 1.5 m (4 ft – 5 ft); higher for security applications |
| Number of Strands | Typically 3 to 6 strands, based on required security level |
Installation Notes
Let’s be honest: Barbed wire fence is not for the careless. The barbs are extremely sharp, and improper handling will lead to injuries. Only trained installers or those with proper protective equipment should attempt installation. When correctly set up—often on top of walls or posts, sometimes with angled brackets for multiple rows—barbed wire fencing is a formidable obstacle.

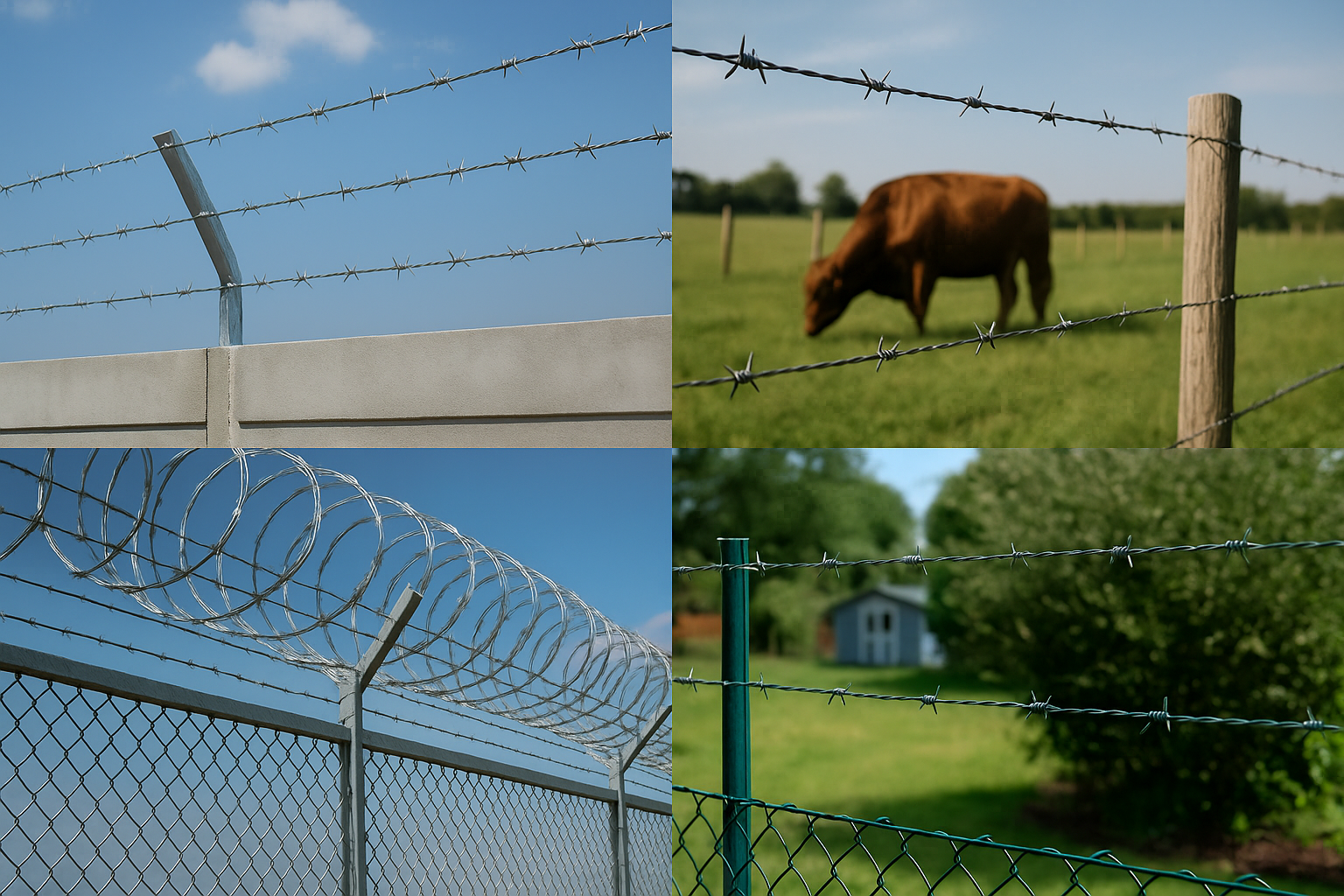

Typical Applications
- Perimeter security for industrial, commercial, and military sites
- Livestock and farmland fencing
- Airport and prison fencing (with razor wire upgrade)
- Residential security for gardens and backyards
Conclusion
Barbed wire fence is not about aesthetics—it’s about results. If you need a cost-effective, tough, and proven solution to secure your property or land, barbed wire fence is the answer. Choose the right material and configuration, and ensure professional installation to maximize safety and effectiveness.
