Gabion Box is one of the most efficient and cost-effective products for construction, landscaping, and erosion control. At BMP, we offer double twisted and welded Gabion Boxes with a variety of sizes, wire types, and finishes to meet different project needs. Whether you need structural stability for slopes or a decorative stone cage for modern architecture, our gabion boxes deliver unmatched strength and environmental value.
🧱 BMP Gabion Box – Applications & Structural Options
Gabion Boxes are broadly used in both civil engineering and landscaping. They are categorized by structure into:

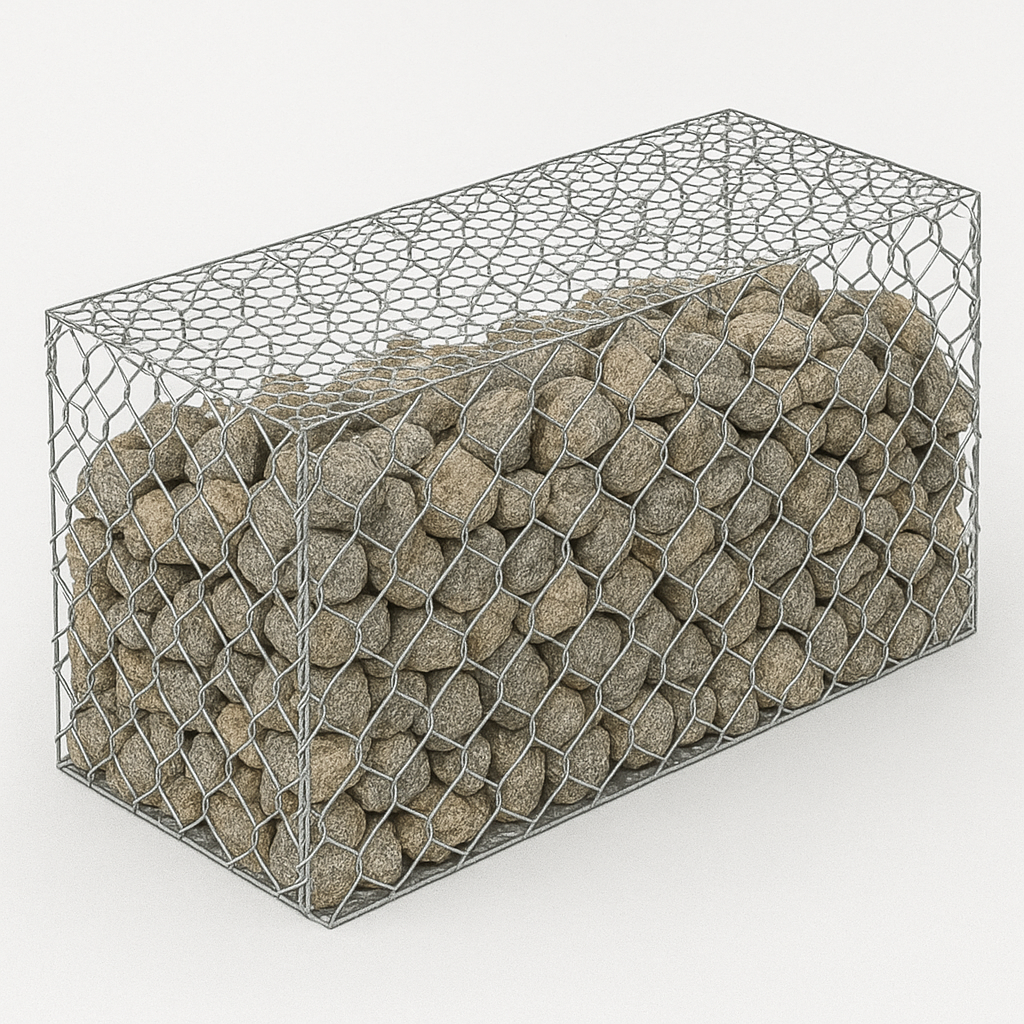

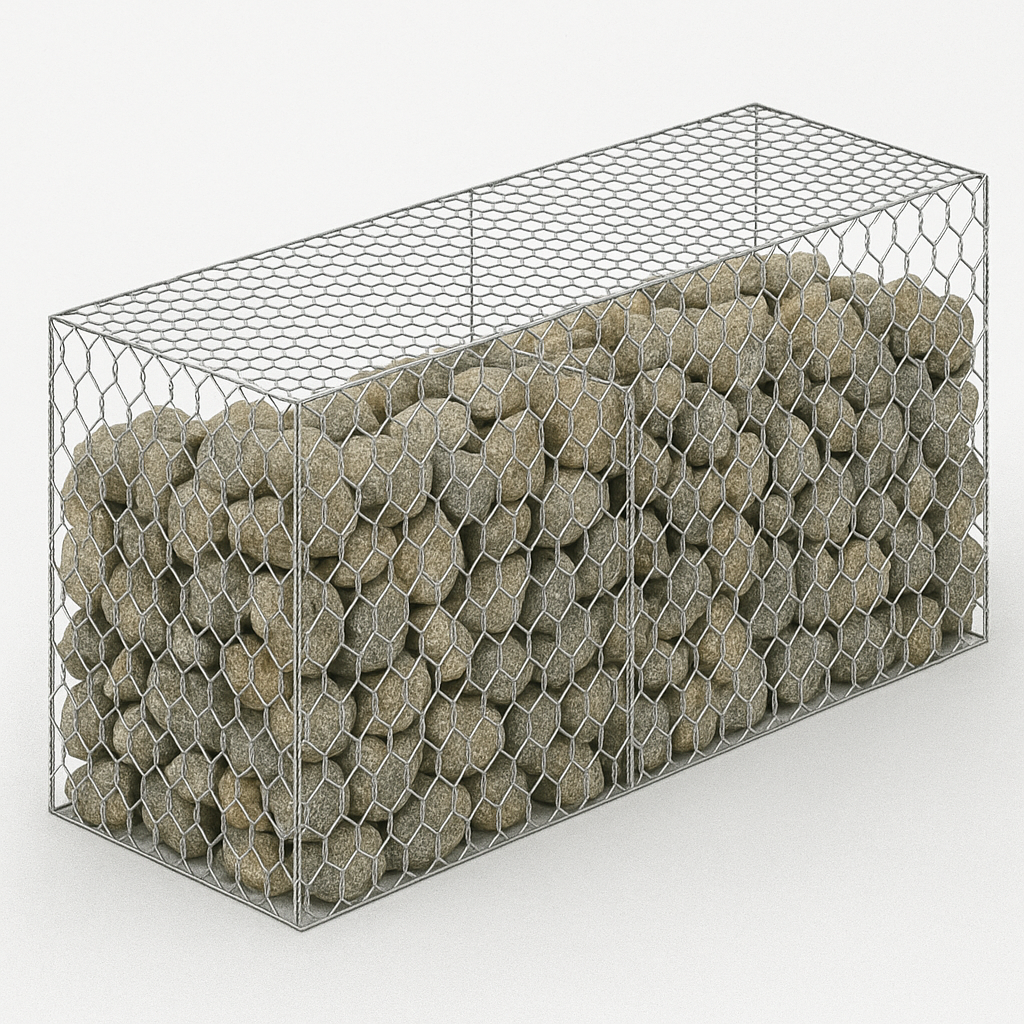

🧱 Double Twisted Gabion Box
- Best for: Slope stabilization, riverbank protection, retaining walls, and erosion control.
- Structure: Flexible woven hexagonal mesh with high strength and no welding point.
- Why choose it: Can withstand high impact, torrential floods, and shifts in the earth without breaking apart.

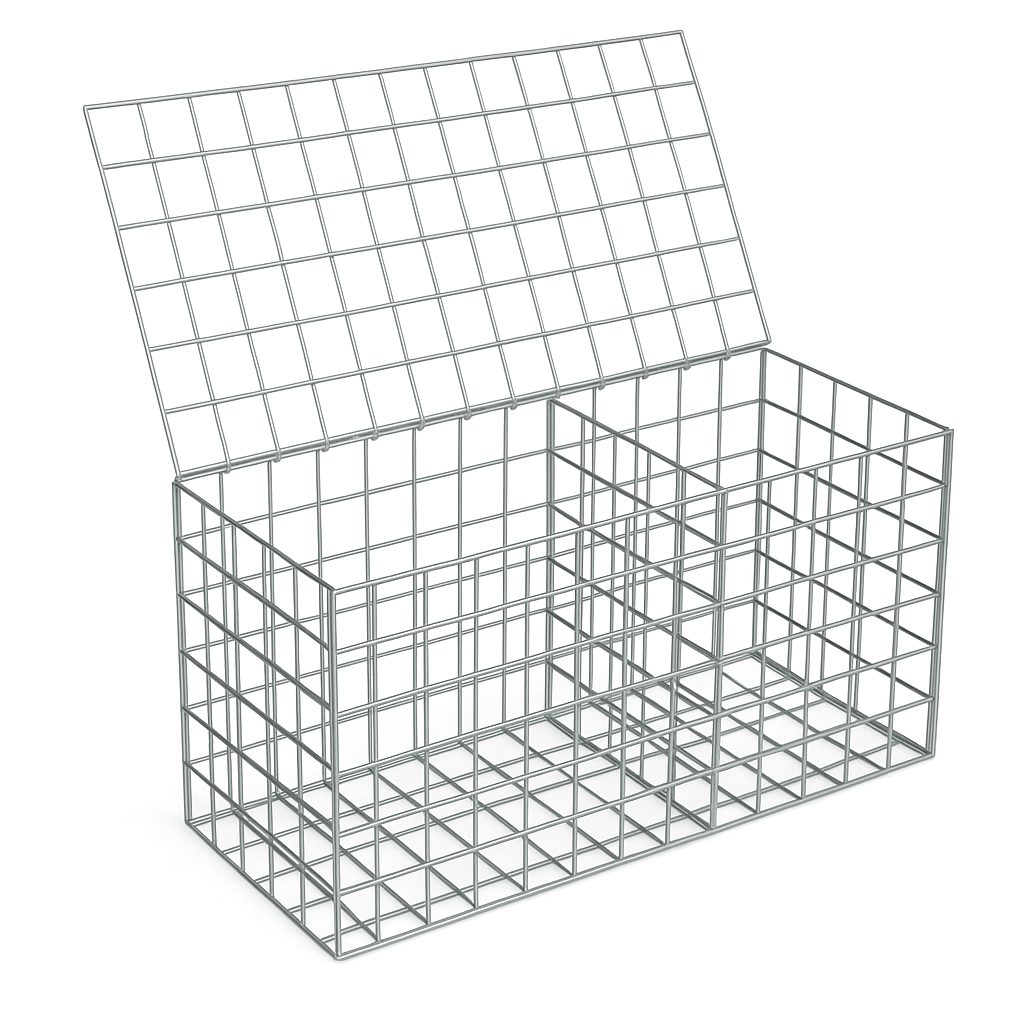

🧱 Welded Gabion Box
- Best for: Decorative uses like planters, benches, fences, and façade cladding.
- Structure: Rigid square mesh that holds its shape after stone filling.
- Why choose it: Excellent appearance and firmness, ideal for architecture.
🧱 BMP Gabion Box Product Specifications
Wire Diameter:
Double Twisted: 2.0–5.0 mm
Welded: 4.0–5.0 mm
Mesh Size:
Double Twisted: 60×80 mm, 80×100 mm, 100×120 mm
Welded: 76.2×76.2 mm (most popular)
Material Options:
Galvanized steel wire
Zinc-aluminum coated steel wire

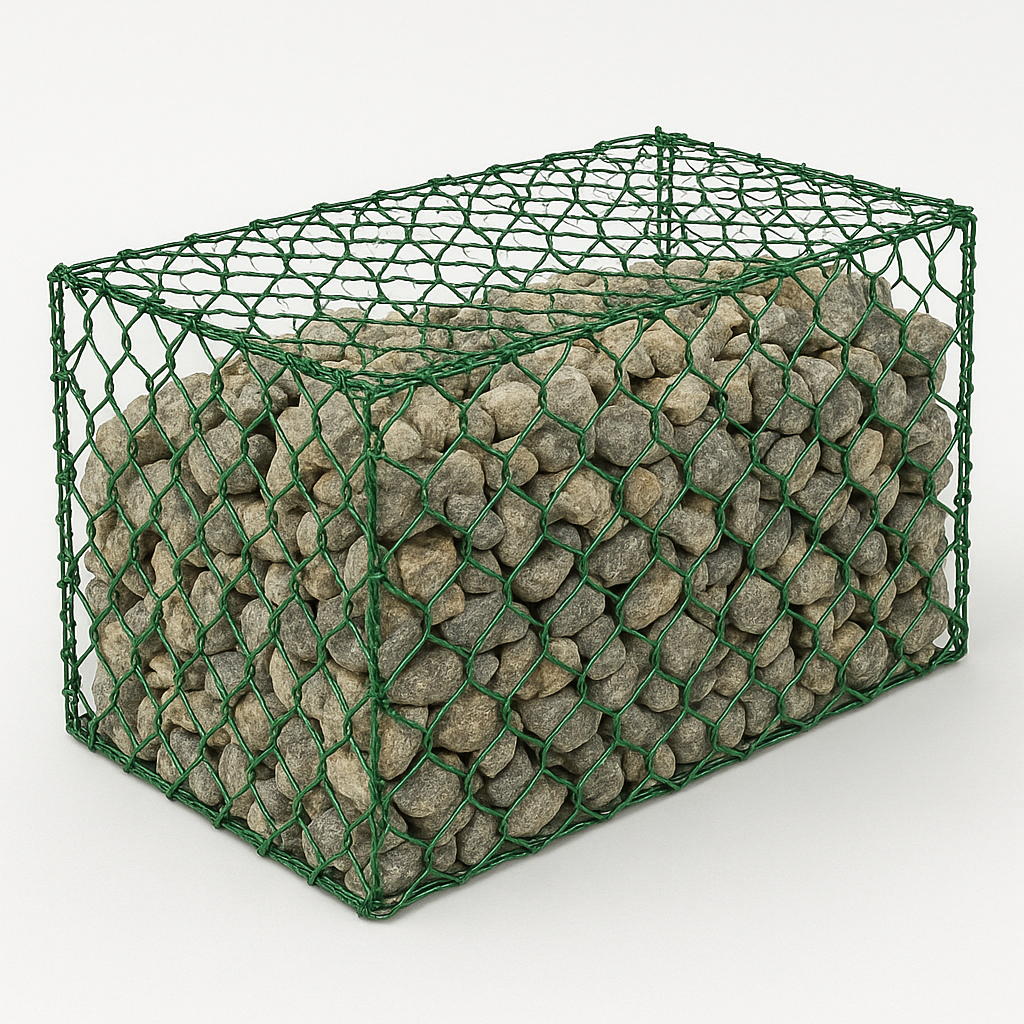

PVC coated steel wire (green color)
📦 Box Sizes and Capacity
| Nominal Size (m) | Diaphragms | Capacity (m³) |
|---|---|---|
| 1.0 × 1.0 × 0.5 | 0 | 0.5 |
| 1.0 × 1.0 × 1.0 | 0 | 1.0 |
| 1.5 × 1.0 × 0.5 | 0 | 0.75 |
| 1.5 × 1.0 × 1.0 | 0 | 1.5 |
| 2.0 × 1.0 × 0.5 | 1 | 1.0 |
| 2.0 × 1.0 × 1.0 | 1 | 2.0 |
| 3.0 × 1.0 × 0.5 | 2 | 1.5 |
| 3.0 × 1.0 × 1.0 | 2 | 3.0 |
| 4.0 × 1.0 × 0.5 | 3 | 2.0 |
| 4.0 × 1.0 × 1.0 | 3 | 4.0 |
- HS Code: 73262090
- Fictional Price (FOB China): $9.60–$18.50 per unit (based on size and finish)
🧱 BMP – Key Benefits
- 💰 Economical: Affordable, low-maintenance, and long lifespan.
- 🔧 Easy to Use: Quick installation with basic tools.
- 🌊 High Strength: Withstands flood impact, shifting soil, and heavy loads.
- 🌱 Eco-Friendly: Promotes vegetation growth, integrates with nature.
- 🛡️ Corrosion Resistant: Suitable for harsh, wet, or chemical-prone environments.
- 💎 Durable Structure: Lasts several years with minimal care.
🧱 BMP- Packaging & Delivery
- Packaging: Flat-packed for easy transportation and storage.
- Contents: Gabion panels, lacing wire or spiral binders, stiffeners (if required).
- Shipping: Palletized bundles wrapped in PE film or strapped with steel belts.
- Customization: We offer OEM packaging and logos upon request.
🧱 BMP Gabion Box – Real Feedback from Qatar
“We’ve used BMP’s double twisted gabion boxes for flood control in Doha and have been very impressed. The quality is excellent, assembly is fast, and they hold up well under pressure. Highly recommended for large-scale infrastructure.”
— Ali R., Construction Supervisor, Qatar
🧱 BMP Gabion Box – Conditions to Consider Before Installation
- 🌍 Environment Type: Choose zinc-aluminum or PVC-coated wire for coastal or industrial zones.
- 🏗️ Ground Preparation: Clear and level the installation site to prevent box deformation.
- 🔗 Assembly Support: Use internal stiffeners for higher boxes to prevent bulging.
- 🪨 Stone Selection: Use angular, non-round stones for tighter fit and greater stability.
- 🌧️ Drainage Considerations: Always ensure proper water flow behind the gabion wall.
🧱 BMP Gabion Box – Frequently Asked Questions (FAQs)
- Q1: What’s the difference between double twisted and welded gabion boxes?
A: Double twisted types offer flexibility and impact resistance, ideal for flood control. Welded types are rigid and better for decorative uses. - Q2: How long does a gabion box last?
A: Galvanized boxes typically last 10–15 years. PVC-coated ones can last over 20 years in ideal conditions. - Q3: Can I install BMP gabion boxes without heavy equipment?
A: Yes. Most residential or medium-sized projects only need basic tools for installation. - Q4: Is it possible to customize sizes?
A: Yes, BMP offers custom sizes and wire finishes to suit your project. - Q5: Are gabion boxes environmentally friendly?
A: Yes. They support plant growth, reduce erosion naturally, and blend into landscapes.
🧱 BMP Gabion Box – Your Ultimate Choice
BMP’s Gabion Boxes combine strength, versatility, and affordability. Whether for erosion control, infrastructure projects, or eye-catching landscaping, our solutions stand the test of time. With extensive specs, coating options, and strong customer satisfaction from Qatar to beyond, BMP Gabion Boxes are your most reliable choice.
Contact BMP today for free samples or to request a quote tailored to your project.
