Gabion Wall
- Product Name: Gabion Wall
- Brand: BMP
- Mesh Type: Double twisted hexagonal or welded mesh
- Mesh Size (Hexagonal): 60×80 mm, 80×100 mm, 100×120 mm
- Mesh Size (Welded): 76.2×76.2 mm
- Wire Diameter: 2.7 mm (woven), 4.0–5.0 mm (welded)
- Material: Galvanized steel, Galfan-coated steel, PVC coated
- Surface Coating: Zinc (≥ 245 g/㎡), Galfan, PVC (≥ 0.38 mm)
- Standard Sizes: 2×1×1 m, 3×1×1 m, custom available
- Color Options: Silver, Green, Black
- Accessories: Spiral wires, hog rings, binding wires
- Packing: Folded or flat-packed; accessories boxed
- HS Code: 7308900000
- Reference FOB Price: USD 4.50–6.80/㎡
Introduction
BMP Gabion Wall combines utility, engineering efficiency, and natural aesthetics in one eco-structure. Designed from double twisted wire mesh or welded mesh panels, gabion walls are the top choice for slope stabilization, bank reinforcement, erosion control, foundation safety, and even modern landscaping and building facades.
These walls allow for excellent drainage, adapt to soil movement, support plant growth, and require minimal maintenance. Whether for civil engineering or urban décor, BMP offers gabion systems that are both functional and elegant.
 |
 |
 |
 |
📊 Gabion Wall – Complete Specification Table
| Item | Specification |
|---|---|
| Product Name | Gabion Wall |
| Brand | BMP |
| Mesh Type | Double-twisted hexagonal |
| Mesh Opening Size | 60×80 mm, 80×100 mm, 100×120 mm |
| Wire Diameter (Mesh) | 2.2 mm, 2.7 mm, 3.0 mm |
| Selvedge Wire Diameter | 3.4 mm |
| Lacing/Wiring Diameter | 2.2 mm |
| Material Options | Galvanized wire (≥240 g/m²), Galfan Zn–Al alloy, PVC coated (≥0.38 mm) |
| Tensile Strength | 350–550 N/mm² |
| Elongation | ≥8–12% |
| Standard Sizes (L×W×H) | 2×1×1 m, 3×1×1 m, 4×1×1 m |
| Box Depth Options | 0.3 m, 0.5 m, 1 m, 1.5 m |
| Mattress Thickness Options | 0.17 m, 0.23 m, 0.3 m |
| Standards | ASTM A975, EN 10223-3, EN 10244, ASTM A641, BS 443 |
| Color Options | Silver, Green, Black |
| Accessories | Spiral wires, hog rings, stiffeners |
| Packing | Folded/flat-packed; accessories boxed |
| HS Code | 7308900000 |
| Reference FOB Price | USD 4.80/㎡ |
🔍 Key Notes:
- Wire & Mesh Standards: Comply with ASTM A975 or EN 10223‑3; hexagonal double-twisted mesh (8×10 mesh pattern)
- Coating Minimums: Zinc coating ≥ 240 g/m² for 2.7 mm; Galfan (Zn₉₅/Al₅) with ≥ 245 g/m² for 2.7 mm; PVC ≥ 0.38 mm
- Wire Strength & Flexibility: 350–550 N/mm² tensile strength; ≥ 8% elongation (EN norms)
- Construction Sizes: Common boxes 2×1×1 m etc.; mattresses and half-depth options available
🌿 BMP Gabion Wall Applications
- Riverbank & Coastal Protection

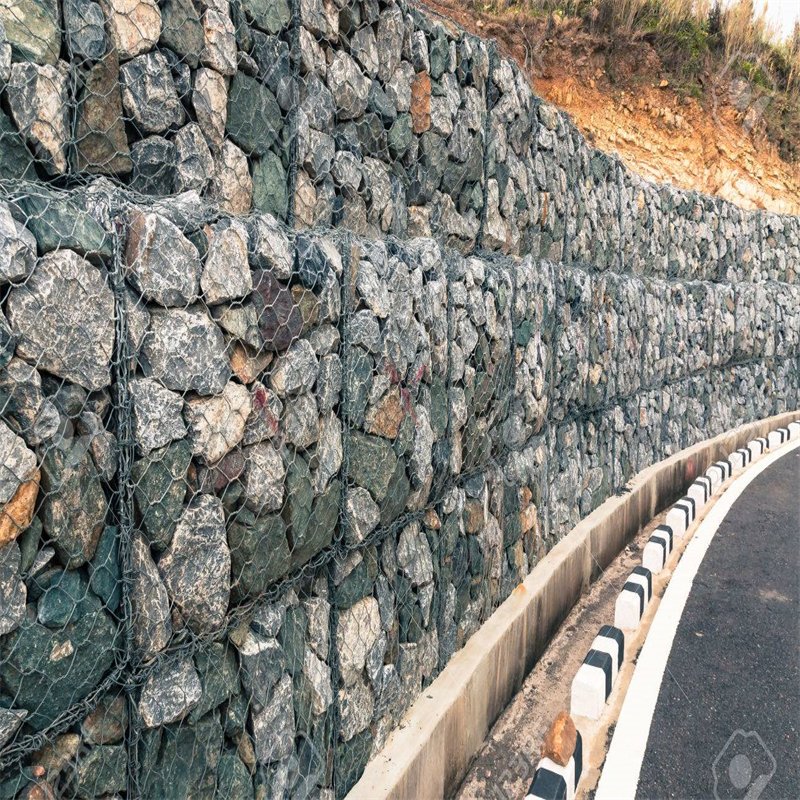

Prevents scouring, flooding, and erosion with natural integration. - Slope & Roadside Reinforcement
Stabilizes soil, minimizes landslide risks, and integrates greenery. - Bridge and Foundation Support
Reinforces embankments, bridge abutments, and structural foundations. - Landscape & Decorative Use
Enhances walls, benches, planters, and urban green spaces. - Noise Barrier and Security Fence
Adds acoustic dampening and high-strength boundary separation.
🌟 BMP Gabion Wall Benefits
🧱 Strong and Flexible Structure
Woven mesh adapts to ground settlement or earthquakes without cracking.
💧 Excellent Drainage and Water Permeability
Open stone structure allows water to pass through freely, reducing hydrostatic pressure.
🌱 Ecological Integration
Gaps between rocks support vegetation growth naturally, promoting green development.
🛠️ Easy to Install and Low Maintenance
Modular design supports mechanized or manual installation—less labor, faster deployment.
♻️ Recyclable and Cost-Efficient
All materials are environmentally safe and reusable; filler can include natural stones or clean construction waste.
🧩 Versatile Design
Fits seamlessly into landscapes, buildings, or infrastructure—custom shapes and sizes available.
📦 BMP Packaging & Logistics
- Folded or compressed into pallets for easy stacking
- Accessories (rings, spiral binders) packed separately in boxes
- 20′ container holds ~8,000–10,000 ㎡
- 40′ container holds up to 18,000 ㎡
- Custom labeling, palletizing, or color packaging available upon request
🇶🇦 Positive Feedback from Qatar
“BMP’s gabion walls helped stabilize a highway embankment near Doha. We experienced zero erosion during storm season. Their mesh held firm, and we saw natural grass regrowth within weeks. Highly recommended for both performance and appearance.”
– Khalid M., Senior Engineer, Qatar Infrastructure Authority
🔍 Conditions to Consider Before Use
- Foundation: Ensure basic leveling and soil compaction to avoid differential settlement.
- Filler Selection: Use hard, weather-resistant stones of appropriate size to avoid spillage.
- Drainage Planning: Incorporate weep holes or backfill with aggregate for better water flow.
- Vegetation Goals: For green projects, use a soil-rock mix or plantable core gabions.
- Coating Type: In saline or humid zones, prioritize Galfan or PVC-coated wire.
- Climate: Choose mesh type (woven/welded) based on seismic or freeze-thaw concerns.
📚 BMP FAQs – Gabion Wall
Q1: What type of wire coating should I choose for coastal areas?
A1: We recommend PVC-coated Galfan wire for maximum corrosion resistance.
Q2: Can gabion walls be used as load-bearing retaining structures?
A2: Yes, they are commonly used for retaining earth on slopes, hillsides, or roads.
Q3: Are gabion walls suitable for green projects?
A3: Absolutely. The stone gaps support natural or planned vegetation, enhancing the site’s ecology.
Q4: How long is the lifespan of a gabion wall?
A4: BMP gabions last 30–50 years, depending on material choice and environmental exposure.
Q5: What kind of maintenance is required?
A5: Minimal. Occasional inspections and vegetation trimming if used in landscaping.
Q6: Can BMP provide installation support or design consultation?
A6: Yes. We offer CAD drawings, 3D layouts, and installation guidance for large projects.
⚙️ BMP Gabion Wall Types

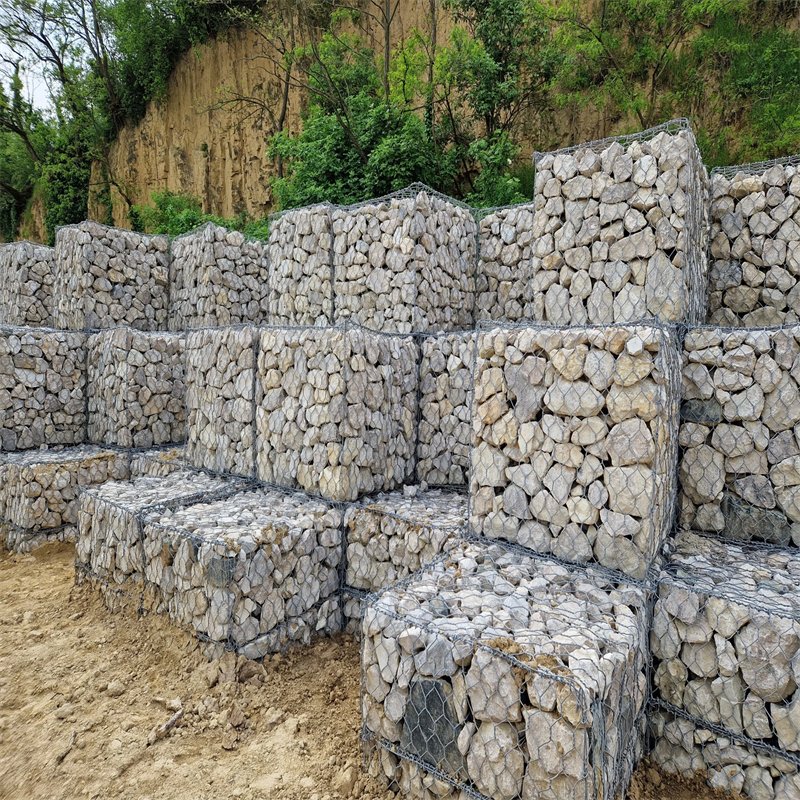

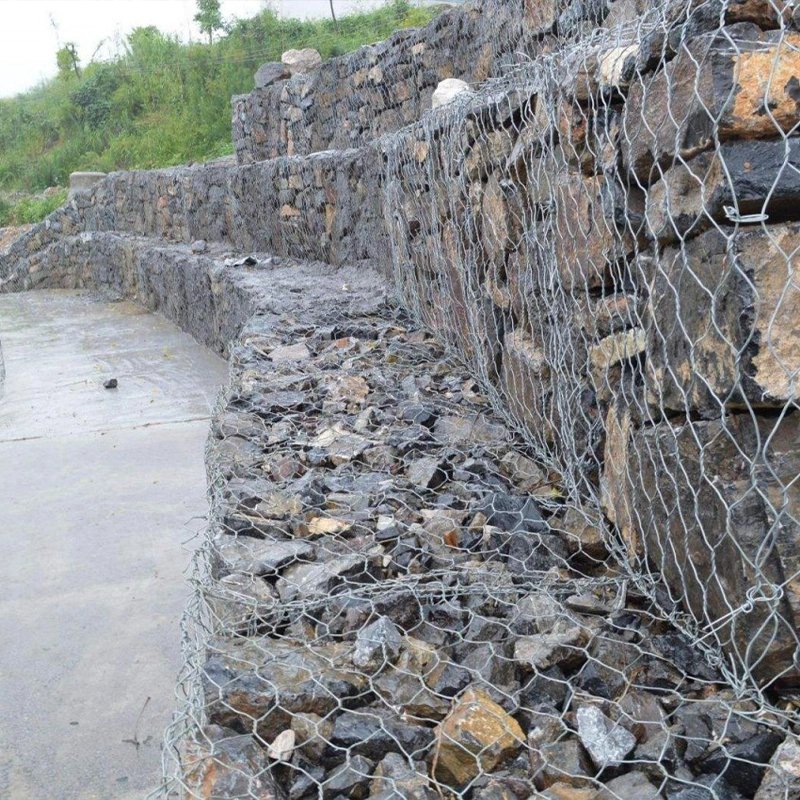

🔷 Woven (Double Twisted) Gabion Walls
- Best for river, slope, and flexible terrain applications
- Mesh sizes: 60×80 mm, 80×100 mm, 100×120 mm
- Commonly in 2.7 mm wire

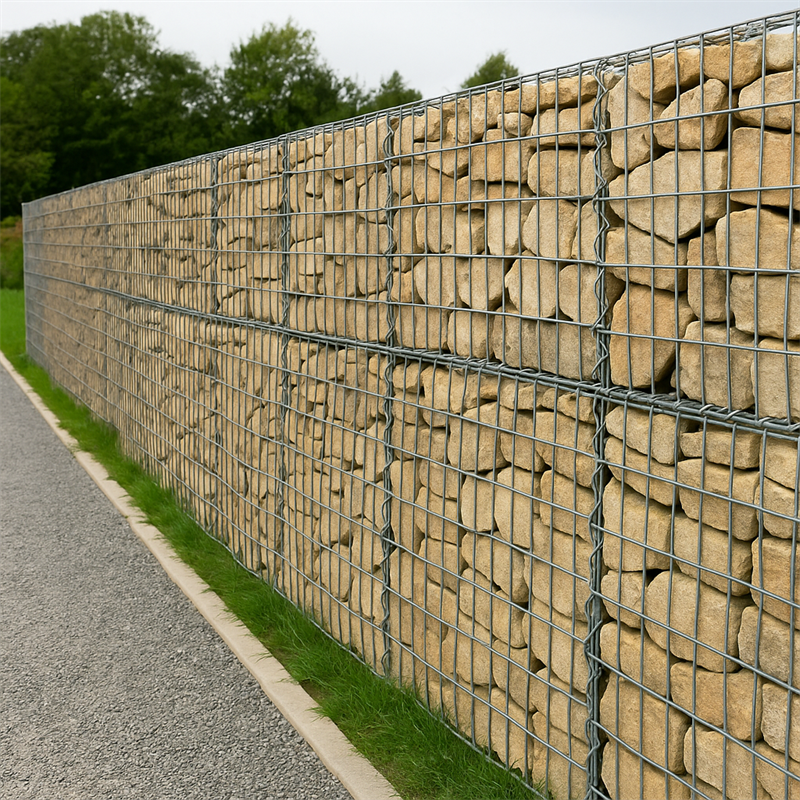

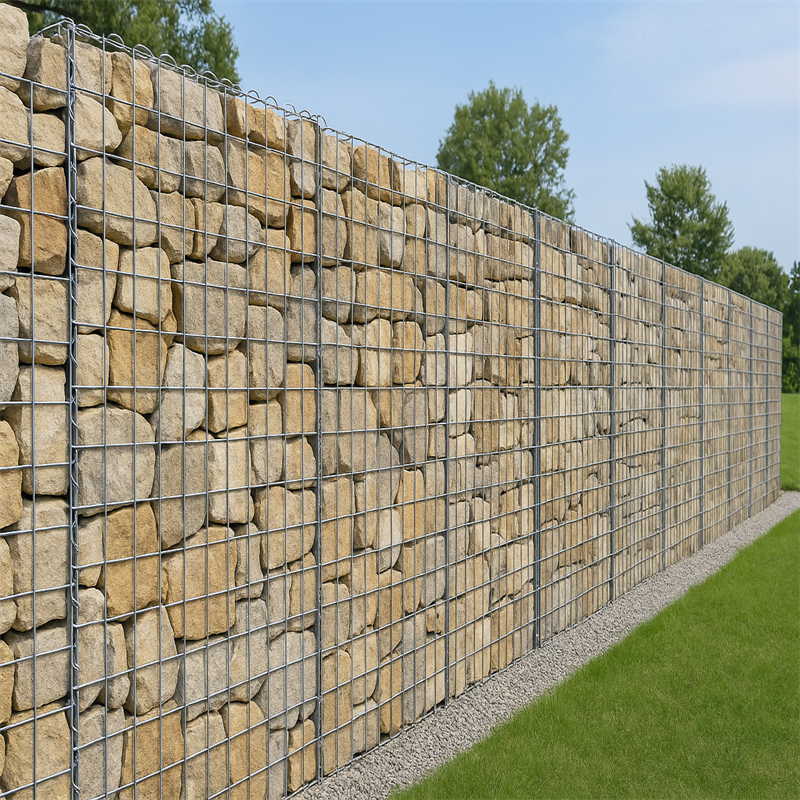

🔷 Welded Gabion Walls
- Perfect for architecture, facades, or load-bearing walls
- Square mesh: 76.2×76.2 mm
- Typically 4.0 or 5.0 mm wire for rigid strength
🏁 Conclusion: Why Choose BMP Gabion Wall Systems?
BMP’s Gabion Wall solutions bring together the best of modern engineering and natural integration. With flexible formats, multiple mesh styles, corrosion-resistant finishes, and sustainable advantages, BMP gabions deliver unmatched value, safety, and elegance in any construction scenario.
From flood control to high-end facades, gabion walls serve it all — backed by ISO certification, SGS reports, and years of global project experience.
📩 Contact BMP today for technical support, quotation, or to request a sample gabion module for your project.
