Defensive Bastion Barriers
- Certification: ASTM, ISO9001, RoHS, CE
- Hole Shape: Square
- Frame Finishing: Galvanized / PVC Coated
- Surface Treatment: Galvanized / PVC Coated
- Weave Technique: Welded
- Material:
- Low Carbon Steel Wire
- High Quality Galvanized Wire
- Mesh Hole Sizes:
- 80 × 100 mm
- 60 × 80 mm
- Wire Diameter Options: 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, etc.
- Lacing Wire Options: 2.2 mm, 3.2 mm
- Mesh Size: Customized according to customer requirements
- Applications:
- Retaining Walls
- Erosion Control
- Landscaping
- Type:
- Welded Gabion
- OEM & ODM: Acceptable
- Aperture Options: 50 mm, 75 mm, 100 mm, 150 mm, etc.
- Transport Package: Plastic film, then on pallet or in bulk
- Specification: Customized
- Trademark: BMP
- Origin: Anping, Hebei
- HS Code: 73142000
- Production Capacity: 10,000 pieces/year
Introduction
At BMP, we design and supply Defensive Bastion Barriers that represent a revolutionary leap in protection for military, humanitarian, and civilian operations. Since WWII, no other field fortification system has matched the strength, convenience, and rapid deployment capabilities of these barriers. Built with galvanized welded mesh and heavy-duty polypropylene geotextile, they serve as reliable safeguards for soldiers, vehicles, facilities, and valuable equipment in hostile environments.
📐 Specifications – BMP Defensive Bastion Barriers
Our barriers are built for strength, longevity, and easy deployment. See the detailed specs below:
- Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wire
- Wire Diameter: 4 mm or 5 mm
- Mesh Size Options:
- 50 × 50 mm
- 75 × 75 mm
- 76.2 × 76.2 mm
- 50 × 100 mm
- 100 × 100 mm
- Geotextile: 2 mm thick heavy-duty non-woven polypropylene
- Colors Available:
- White
- Beige
- Military Green
- Custom colors upon request
- HS Code: 7308900000
- Unit Price: USD 68.00 / unit (based on 4-cell module)
📏 BMP Defensive Bastion Barriers – Model Specifications Table
| Item No. | Height (m) | Width (m) | Length (m) | Number of Cells |
|---|---|---|---|---|
| BMP 1 | 1.37 | 1.06 | 10 | 5 + 4 = 9 cells |
| BMP 2 | 0.61 | 0.61 | 1.21 | 2 cells |
| BMP 3 | 1.00 | 1.00 | 10 | 5 + 5 = 10 cells |
| BMP 4 | 1.00 | 1.50 | 10 | 5 + 5 = 10 cells |
| BMP 5 | 0.61 | 0.61 | 3.05 | 5 cells |
| BMP 6 | 1.68 | 0.61 | 3.05 | 5 cells |
| BMP 7 | 2.21 | 2.13 | 27.74 | 5 + 4 + 4 = 13 cells |
| BMP 8 | 1.37 | 1.22 | 10 | 4 + 5 = 9 cells |
| BMP 9 | 1.00 | 0.76 | 9.14 | 6 + 6 = 12 cells |
| BMP 10 | 2.12 | 1.52 | 30.50 | 5 + 5 + 5 + 5 = 20 cells |
| BMP 11 | 1.22 | 0.30 | 1.22 | 2 cells |
| BMP 12 | 2.13 | 1.06 | 33 | 6 × 5 = 30 cells |
| BMP 19 | 2.74 | 1.06 | 3.18 | 6 cells |
🛡️ 🔧 Benefits of BMP Defensive Bastion Barriers
✅ Exceptional Strength
- Two feet thick stops rifle bullets and shell fragments.
- Four feet thick stops most car bombs.
- Five feet thick protects from RPG blasts.
✅ Multi-Cell Customization Defensive bastion barriers
You can use our barriers as individual cells or connect multiple units with joint pins for custom configurations.
✅ Quick Assembly & Labor Savings Defensive bastion barriers

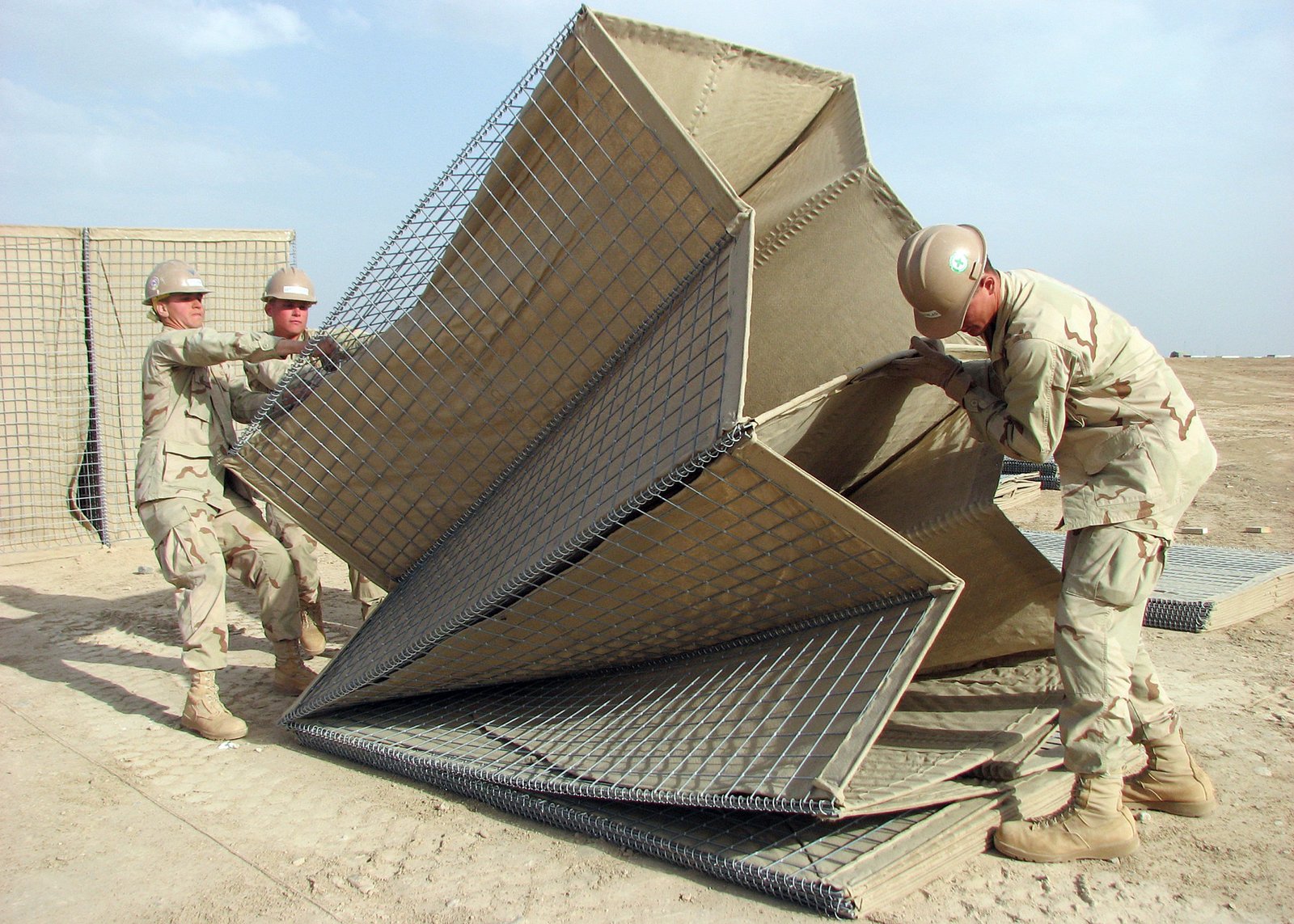

Unfold the barriers and fill them with readily available material such as sand, soil, gravel, or crushed rock. One team can deploy a full barrier system in a fraction of the time needed for traditional sandbags.
✅ Compact & Stackable
BMP barriers collapse easily for pallet stacking, saving storage space and reducing logistics costs.
🚧 📦 Packaging & Transport
Our defensive bastion barriers are packed for efficiency:
- Stackable Pallet Units
- Each pallet holds 5–8 modules depending on the cell size
- Modules are collapsible, folded flat
- Wrapped in moisture-proof packaging for long-distance shipment
- Shipping Mark: BMP | DEFENSIVE BARRIER | MADE IN CHINA
📌 🌍 BMP Defensive Bastion Barriers Applications
🧱 Ammo Compounds
Secure high-risk storage zones with multiple-thickness barrier walls.
🎧 Noise Barriers
Create sound-proofing zones around operation areas.
🔭 Sentry Towers
Elevated observation posts using stacked bastion barriers.
🛂 Guard Posts
Quick-to-build and reinforced posts in kit form or improvised setups.
🚗 Vehicle Barriers
Physical stop points for controlling vehicle access or hostile threats.
🛡️ Ballistic & Blast Protection
Protect personnel, aircraft, and base infrastructure from external explosives and ballistic threats.
🧍 Personnel Safety Zones
Used to create secure zones for rest, medical units, or command centers.
✈️ Aircraft & Revetment Protection
Shield aircraft and mitigate risks from accidental weapon discharge.
🏠 Living Quarters & Bomb Shelters
Build safe living accommodations or bunkers in temporary or permanent military sites.
🧰 💬 FAQs – BMP Defensive Bastion Barriers
❓ How long does it take to install a BMP barrier?
A trained team can install 10× faster than sandbags. One 4-cell module deploys in under 30 minutes.
❓ What filling materials can I use?
Use local material like sand, gravel, soil, or crushed rock. No need for special supplies.
❓ Can I reuse BMP barriers?
Yes. We offer standard and recoverable types based on your project needs.
❓ Are custom dimensions available?
Yes. We can customize height, width, and depth to meet specific site requirements.
❓ Do you offer support for remote installations?
Yes. We provide an Installation Guide, Technical Brochure, and remote consultation support.
📣 🌟 Positive Feedback from Qatar Defensive bastion barriers
“We used BMP’s defensive bastion barriers in our Doha military logistics center. Rapid deployment saved us days of work. Their quality is outstanding and weather-resilient, even in Qatar’s intense heat.”
– Maj. Khalid, Qatar Armed Forces Logistics Division
⚠️ 🔍 Conditions to Consider When Using BMP Barriers
- Site Accessibility: Ensure the delivery path can accommodate pallets and fill material.
- Soil Conditions: Avoid marshland or overly loose terrain without prior ground reinforcement.
- Drainage Planning: Ensure proper water drainage, especially in areas with seasonal rains.
- Fill Material Quality: Ensure dry, compactable materials for maximum barrier integrity.
- UV Exposure: Choose appropriate geotextile color for extreme sun conditions (e.g., beige or green in desert climates).
🔚 Conclusion: BMP Defensive Bastion Barriers – Your Shield in the Field
When protection cannot be compromised, trust BMP’s Defensive Bastion Barriers. Our engineered structures combine strength, speed, versatility, and economy. Whether for permanent installations or rapid response field operations, BMP barriers provide the confidence, durability, and modular convenience required by today’s complex operational needs.
Contact us now for your custom quote and full catalog.
