Garrison Steel Fence
- Unrivaled Durability & Security
- Pre-galvanized steel tubes with silicon bronze welding
- Optional spear-top panels, flat-top designs, and razor barbed wire
- Flexible Production Methods
- Clip-In Panels: No welding, uprights snap into pre-punched rails
- 360-Degree Welding: Full weld for maximum strength
- Face Welding: Uprights welded to rail surfaces for rigid panels
- Customization Options
- Heights: 1500mm to 3000mm (Standard: 2100mm)
- Colors: 20+ RAL options (e.g., Luminous Yellow, Pastel Turquoise, Traffic Red)
- Accessories: Steel post caps, brackets, anti-climb rings
Complete Specifications
- Panel Size: 2400mm (L) x 2100mm (H) (Customizable)
- Upright (Pickets):
- 25x25x1.2mm / 19x19x1.0mm (Hot-dipped galvanized)
- Post Sizes:
- 65x65x1.5mm / 100x100mm (Powder-coated or galvanized)
- Rails:
- 40x40x1.5mm / 38x25mm (Polyester powder coating)
Category：Product, Steel Fence
Introduction
BMP’s Garrison Steel Fence delivers superior security for industrial, commercial, and residential properties. Engineered with heavy-duty steel, anti-climb features, and customizable finishes, it offers long-lasting durability and robust protection.
Why Choose BMP Garrison Steel Fence?
1. Unrivaled Durability & Security
BMP uses pre-galvanized steel tubes and silicon bronze welding to prevent rust. Choose from spear-top panels, flat-top designs, or add razor barbed wire for enhanced deterrence.
2. Flexible Production Methods
- Clip-In Panels: Uprights snap into pre-punched rails (no welding).
- 360-Degree Welding: Full weld for maximum strength.
- Face Welding: Uprights welded to rail surfaces for rigid panels.
3. Customization Options
- Heights: 1500mm to 3000mm (standard: 2100mm).
- Colors: 20+ RAL options, including Luminous Yellow, Pastel Turquoise, and Traffic Red.
- Accessories: Steel post caps, brackets, and anti-climb rings.
Complete Specifications: BMP Garrison Steel Fence
Panel & Component Details
| Component | Dimensions | Material/Coating |
|---|---|---|
| Panel Size | 2400L x 2100H (customizable) | Pre-galvanized steel |
| Upright (Pickets) | 25x25x1.2mm / 19x19x1.0mm | Hot-dipped galvanized |
| Post | 65x65x1.5mm / 100x100mm | Powder-coated or galvanized |
| Rail | 40x40x1.5mm / 38x25mm | Polyester powder coating |
| Additional Products | Details | |
| 3D Welded Mesh Panels | Anti-climb design for prisons, airports. | |
| Razor Barbed Wire | High-tensile steel with PVC coating. | |
| Temporary Fencing | Quick-install panels for events. |
How BMP Makes Garrison Steel Fences
- Tube Forming: Shape steel coils into rails and pickets.
- Cutting & Punching: Laser-cut tubes; punch holes for clips/welds.
- Welding: Use silicon bronze for rust-resistant joints.
- Sandblasting: Smooth surfaces for better coating adhesion.
- Pretreatment: Acid wash to remove impurities.
- Galvanizing: Hot-dip zinc coating for corrosion resistance.
- Powder Coating: Apply RAL color finishes.
- Assembly: Attach steel caps, brackets, and clips.
- Packing: Protect with bubble film and pallets.

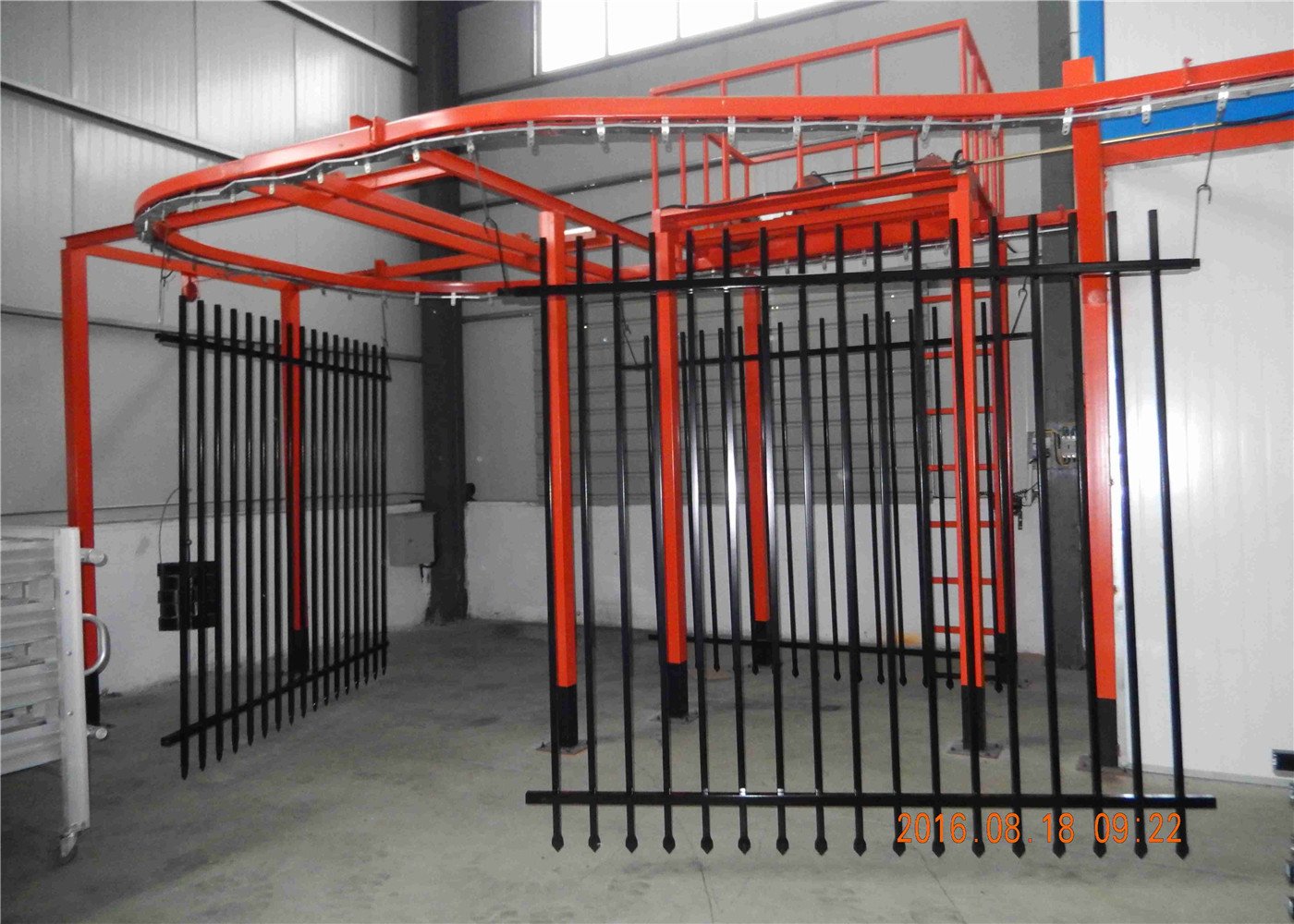

Factory Corner
Applications of BMP Garrison Steel Fence
- Industrial: Secure factories, warehouses, and power plants.
- Military/Government: High-security zones like borders or prisons.
- Agricultural: Protect livestock and crops with 3D mesh panels.
- Residential: Guard pools, gardens, and perimeter walls.
- Events: Temporary fencing for festivals or construction sites.
Benefits of BMP Garrison Steel Fence
✅ 10-Year Warranty: Covers rust, coating wear, and structural issues.
✅ Anti-Climb Design: Spear tops + 3D mesh deter intruders.
✅ Eco-Friendly: 100% recyclable steel and low-VOC coatings.
✅ Low Maintenance: No painting or repairs needed.
FAQs About BMP Garrison Steel Fence
Q: Can I add razor wire to my fence?
A: Yes! BMP offers optional razor barbed wire attachments.
Q: Do you provide temporary fencing?
A: Yes—quick-install panels ideal for events or construction.
Q: What’s the difference between 360-degree and face welding?
A: 360-degree welds are stronger; face welding is faster and cost-effective.
Q: Are your fences compliant with security standards?
A: Yes—meets ISO 1461 and ASTM A123 specifications.
Q: How do I clean the Garrison Steel Fence?
A: Rinse with water; avoid abrasive cleaners to protect the coating.
Beyond Fencing: Additional Security Solutions by BMP
1. 3D Welded Mesh Panels
Ideal for prisons, airports, and high-risk areas. Features anti-cut designs and tamper-proof fixings.
2. Razor Barbed Wire
Made from high-tensile steel with PVC or zinc coatings. Adds extra security to fences or walls.
3. Temporary Fencing
Lightweight, reusable temporary fencing panels for events, construction sites, or crowd control.
Choose BMP for Total Security & Quality
BMP’s Garrison Steel Fence delivers robust, customizable protection for any property. With options like 3D mesh, barbed wire, and temporary panels, we cater to industrial, residential, and government needs. Backed by a 10-year warranty and eco-friendly materials, BMP ensures your investment lasts decades.
Contact BMP today to design your security solution!
