Tubular Steel Fencing Panels by BMP China
- Manufacturer: BMP
- Stocked Size: 2100mm x 2400mm
- Picket Options: Flat top, Crimped spear
- Warranty: 20 years
- Rust Protection: Hot-dipped galvanized + Powder coating
- Installation: Bolt-on assembly, no welding required
- Applications: Airports, Seaports, Tech Parks, Railways, Power Stations
- Material: Hot-dipped galvanized steel
- Surface Treatment: Zinc phosphate + Zinc-rich epoxy powder coating + Polyester color powder coating
- Panel Size: 2100mm (H) x 2400mm (W)
- Pickets per Panel: 17
- Horizontal Rails: 32x32mm, 40x40mm, 45x45mm, 50x50mm, 38x25mm (0.8-2.0mm thickness)
- Vertical Pickets: 16x16mm, 19x19mm, 20x20mm, 25x25mm, 20x40mm (0.8-1.5mm thickness)
- Fence Posts: 50x50mm, 60x60mm, 65x65mm, 75x75mm, 80x80mm (1.2-2.0mm thickness)
- Picket Spacing: 110mm, 116mm, 120mm, 124mm, 130mm
Category：Product, Steel Fence
Introduction
BMP is a trusted tubular steel fencing panels manufacturer in China. We stock a large number of 2100mmx2400mm tubular fence panels for export. Our picket options include flat tops and crimped spear designs. If you provide a drawing, we will weld custom fences for you.
Why BMP Tubular Steel Fencing Panels Work Best
- 20-year warranty for peace of mind.
- No rust with zinc and powder coatings.
- Easy bolt-on assembly – no welding needed.
- Stop trespassers with crimped spear tops.
Where to Use
- Airports/Seaports – Control vehicle access.
- Tech Parks – Guard data centers.
- Railways – Keep tracks safe.
- Power Stations – Protect high-voltage zones.
Top Benefits
- Lasts decades: Zinc coatings fight rust.
- Low upkeep: No painting or repairs.
- Eco-friendly: Recyclable steel materials.
- Strong: Six welds per picket.
How We Make Tubular Steel Fencing Panels
- Cutting & Shaping: We cut steel tubes to size.
- Punching Holes: Machines make holes for pickets.
- Acid Washing: Clean metal for better coating.
- Powder Coating: Apply rust-proof layers.
- Assembly: Bolt parts together.
- Packing: Wrap panels for safe shipping.

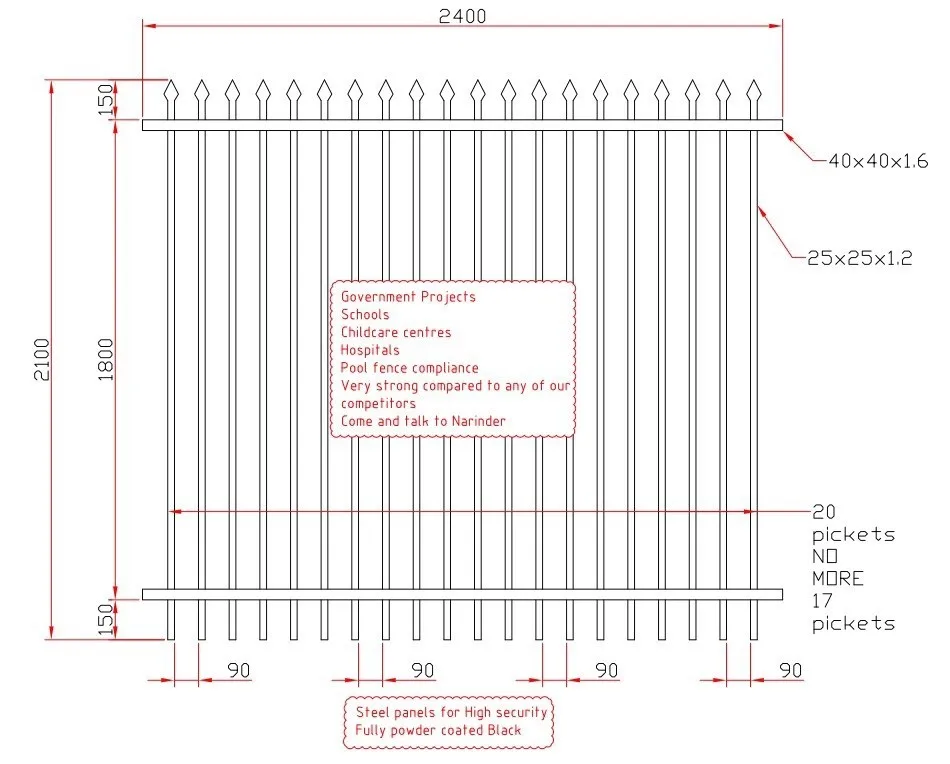

Technical Specifications of Tubular Steel Fencing Panels
| Component | Specification |
|---|---|
| Material | Hot-dipped galvanized steel |
| Surface Treatment | Zinc phosphate + Zinc-rich epoxy powder coating + Polyester color powder coating |
| Fence Panel Size | 2100mm (H) x 2400mm (W) |
| Pickets per Panel | 17 |
| Horizontal Rails | 32x32mm, 40x40mm, 45x45mm, 50x50mm, 38x25mm (0.8-2.0mm thickness) |
| Vertical Pickets | 16x16mm, 19x19mm, 20x20mm, 25x25mm, 20x40mm (0.8-1.5mm thickness) |
| Fence Posts | 50x50mm, 60x60mm, 65x65mm, 75x75mm, 80x80mm (1.2-2.0mm thickness) |
| Picket Spacing | 110mm, 116mm, 120mm, 124mm, 130mm |
| Fence Height Options | 1000mm – 3000mm |
| Fence Width | 2950mm |
| Top Design | Flat or crimped spear |
| Bracket Coating | Powder-coated for durability |
| Installation Mode | Assembling without welding |
| Accessories | Security bolts & nuts, connectors, decorative parts, gaskets, post covers, base plates, snap springs |
| Available Colors | Black, White, Coffee, Grey, Blue, Green (Custom colors available) |
| Packing | Bubble film inside, woven bag outside, pallet packaging |

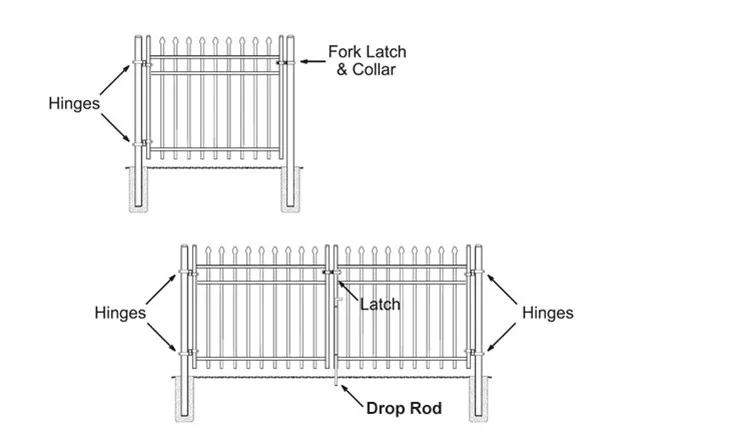

Gates

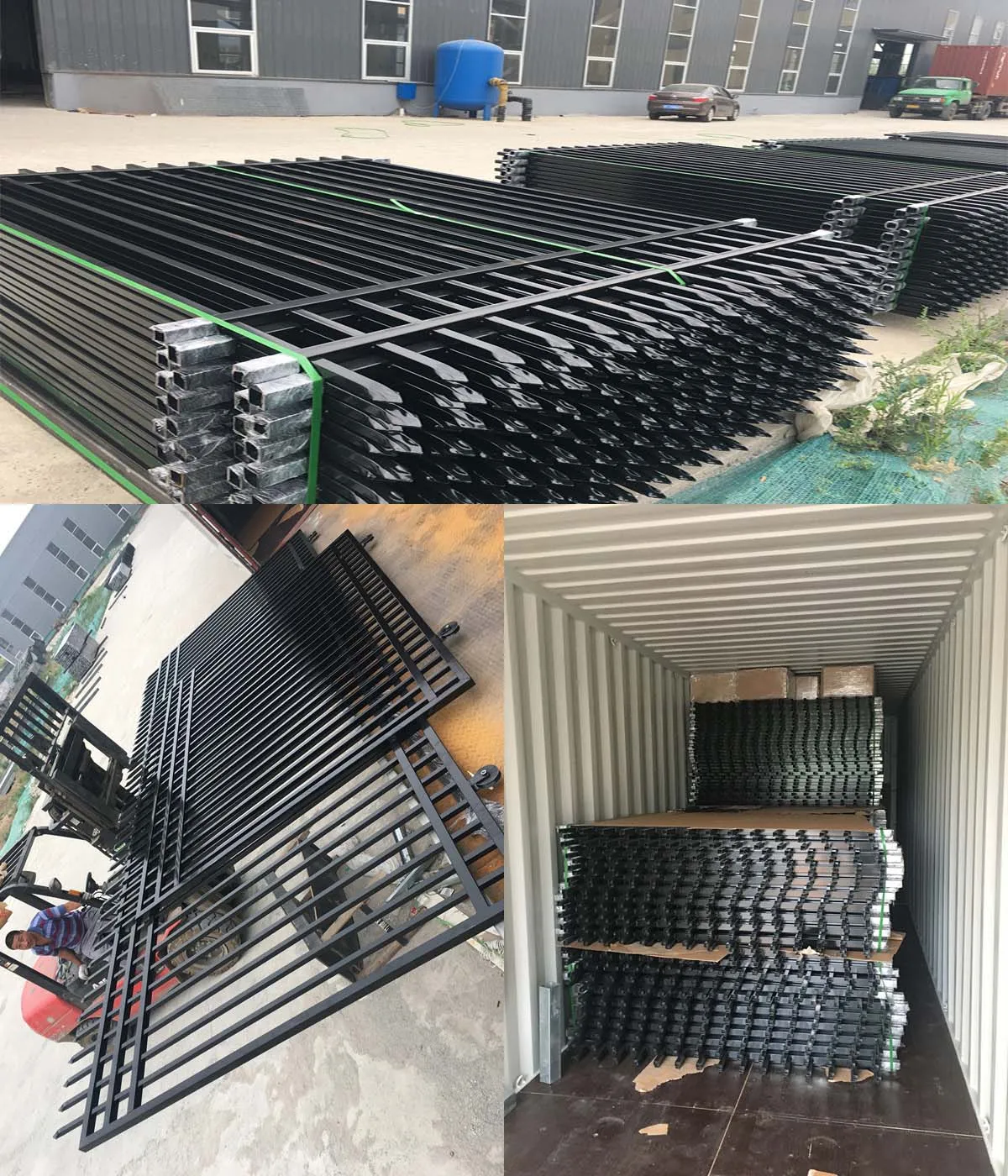

Packing
- Fence Panels: Wrapped in air bubble film and securely packed on a wooden or metal pallet.
- Fence Posts: Each post is individually wrapped in a plastic film bag, with the cap securely covered, then placed on a pallet.
- Fence Accessories: Packed in sturdy cartons for safe transport.
Easy Installation Guide
- Dig holes for posts.
- Bolt panels to posts.
- Add security screws.
- Check alignment.
Clean panels yearly with water. No special tools needed.
How We Apply Colors to Steel Tubular Fencing Panels
BMP uses a 3-step process to ensure vibrant, long-lasting finishes:
- Pre-Treatment: Clean steel with acid washing and zinc phosphate to prevent rust.
- Powder Coating: Electrostatic spray applies color evenly. No drips or streaks.
- Curing: Bake panels at 200°C to harden the coating.
This method creates a thick, chip-resistant layer that lasts 20+ years.
Custom Color Options Tubular Steel Fencing Panels
Need a unique shade? BMP mixes custom colors for special projects. Send your Pantone code or sample, and we’ll match it. Popular requests include:
- Corporate logos (e.g., red for brands, gold for luxury estates).
- Camouflage patterns for military use.
- Two-tone designs (e.g., black posts with grey panels).
Benefits of Powder-Coated Colors
- No paint chips: Unlike liquid paint, powder won’t peel.
- Eco-friendly: Zero harmful solvents used.
- Smooth finish: Resists graffiti and scratches.
- Fast turnaround: Most colors ship in 7-10 days.
FAQs Tubular Steel Fencing Panels
Q: Can I order non-standard sizes?
A: Yes! Send your design. We make panels to fit.
Q: How long until rust appears?
A: 20+ years. Our coatings block rust.
Q: Do panels work on slopes?
A: Yes. Adjust post heights for uneven ground.
Q: What colors do you offer?
A: Black, white, grey, blue, green, or custom shades.
Final Thoughts
BMP’s Tubular Steel Fencing Panels offer top security for airports, rails, and power sites. With no rust, easy setup, and custom sizes, we protect what matters. Request a quote today!
