Welded Wire Mesh

Welded wire mesh is a versatile and reliable product that serves a wide range of industries. Made from various wire materials like low-carbon steel, stainless steel, and galvanized wire, welded wire mesh is used for construction, agriculture, security, and more. Whether it’s used in fences, reinforcement, or machine protection, welded wire mesh offers a durable and strong solution.

Applications

Welded wire mesh has numerous applications due to its strength and versatility. Some of the common uses include:

• Construction: For reinforcement in concrete, road, and bridge projects.
• Fencing: Ideal for use in farms, factories, security areas, and animal enclosures.
• Agriculture: Protects crops and gardens from pests.
• Transportation: Used for road and railway safety barriers.
• Industrial: Provides machine protection and safety grids.
• Decoration: Often used in creative and aesthetic applications, like garden designs.

Benefits

Welded wire mesh has many benefits, making it a preferred choice in various industries:

• Durability: Made from high-quality materials, it can withstand harsh conditions.
• Corrosion Resistance: Galvanized and stainless steel options provide excellent resistance to rust.
• Strong Structure: The welding process ensures a sturdy, reliable product.
• Versatility: Available in various sizes and wire gauges to suit different needs.
• Easy Installation: Lightweight and simple to handle during setup.

Packing

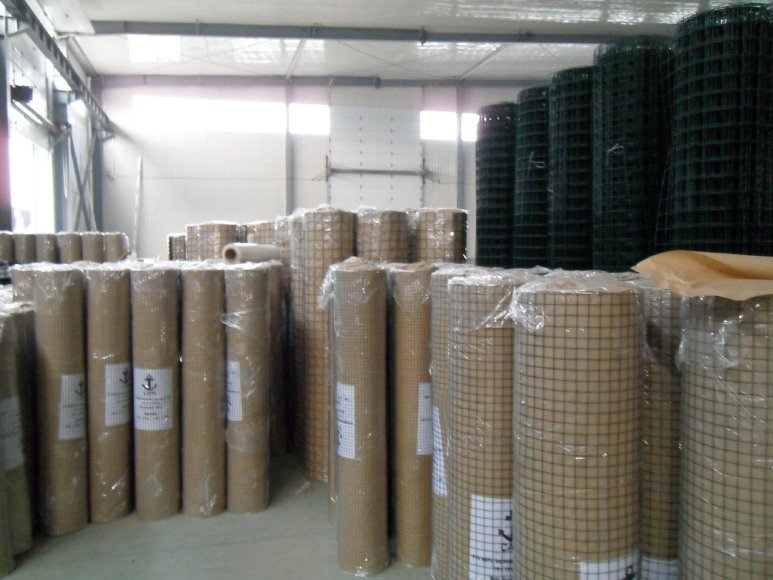

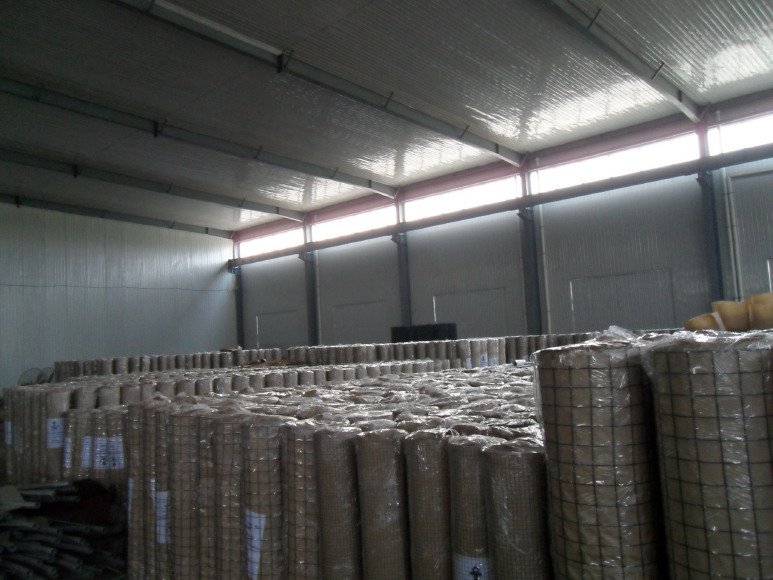

Welded wire mesh is typically packed in rolls for easy transportation. The standard packing includes:

• Waterproof Paper: To protect the mesh from moisture.
• PVC Film: To wrap the mesh securely.
• Custom Packing: Available upon request, depending on the customer’s needs.

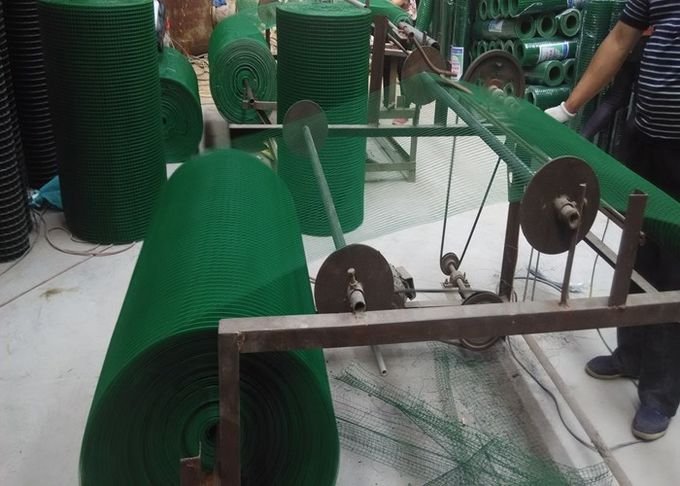

Production Process

The production of welded wire mesh involves several steps to ensure quality and durability:

1. Wire Preparation: Select the right wire material such as low-carbon steel, stainless steel, or galvanized wire.
2. Welding: The wires are welded together using automated machines that ensure precision and strong joints.
3. Surface Treatment: The welded mesh can undergo surface treatments such as galvanizing, PVC coating, or electroplating for added protection.
4. Cutting: The mesh is then cut into the desired size and shape.
5. Quality Check: Each roll is inspected for defects, ensuring only the highest-quality product is shipped.

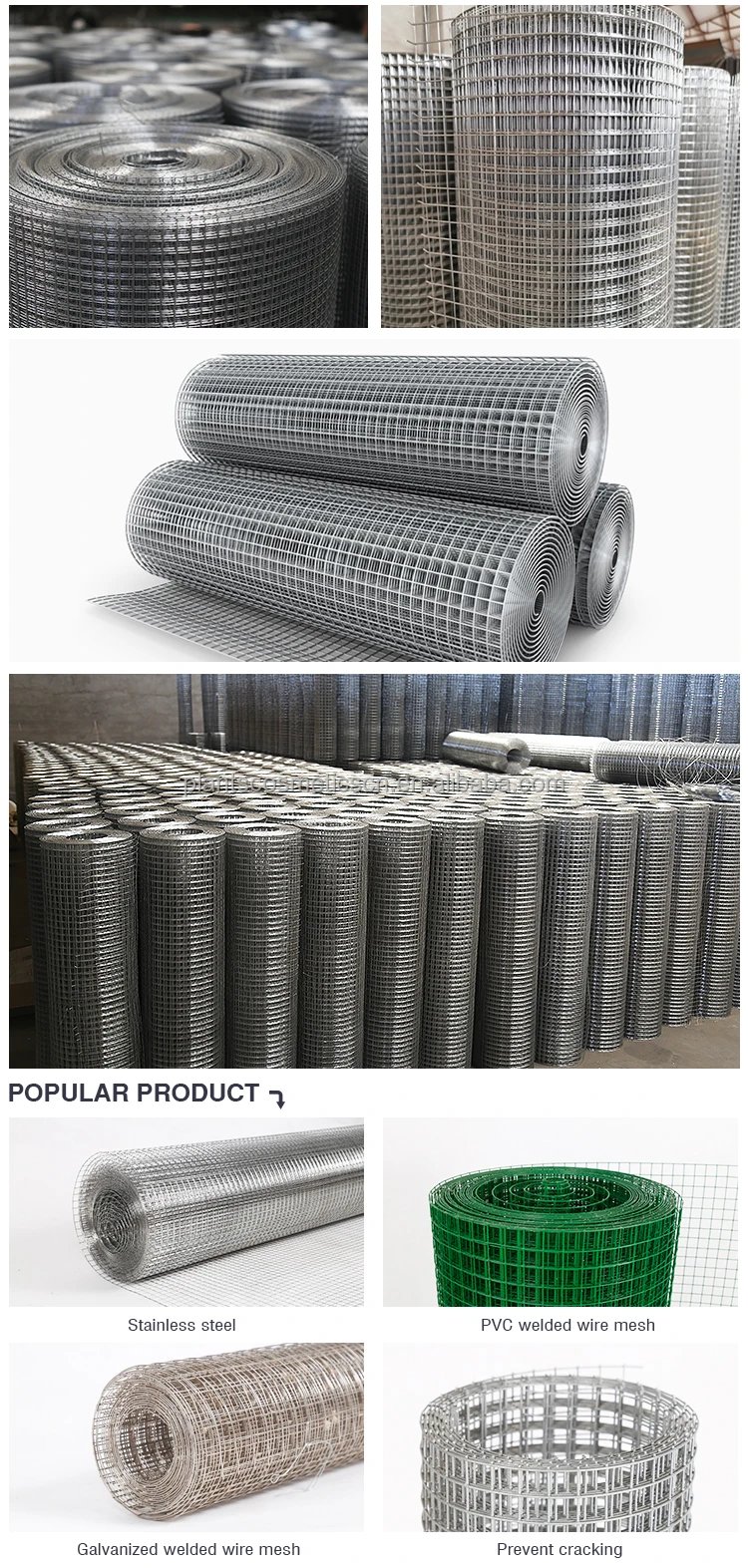

Welded wire mesh is primarily made from the following metals:

• Low Carbon Steel: Common for general applications, offering flexibility and cost-efficiency.
• Stainless Steel: Known for its superior corrosion resistance and strength, making it ideal for harsh environments.
• Galvanized Steel: Coated with a layer of zinc for enhanced durability and resistance to rust and corrosion.

Specifications of Welded Wire Mesh

Standard Specification List of Black or Galvanized and Stainless Steel Welded Wire Mesh:

Opening (in inch)	Opening (mm)	Wire Diameter (BWG)
1/4″ x 1/4″	6.4mm x 6.4mm	22, 23, 24
3/8″ x 3/8″	10.6mm x 10.6mm	19, 20, 21, 22
1/2″ x 1/2″	12.7mm x 12.7mm	16, 17, 18, 19, 20, 21
5/8″ x 5/8″	16mm x 16mm	18, 19, 20, 21
3/4″ x 3/4″	19.1mm x 19.1mm	16, 17, 18, 19, 20, 21
1″ x 1/2″	25.4mm x 12.7mm	16, 17, 18, 19, 20, 21
1-1/2″ x 1-1/2″	38mm x 38mm	14, 15, 16, 17, 18, 19
1″ x 2″	25.4mm x 50.8mm	14, 15, 16
2″ x 2″	50.8mm x 50.8mm	12, 13, 14, 15, 16

---

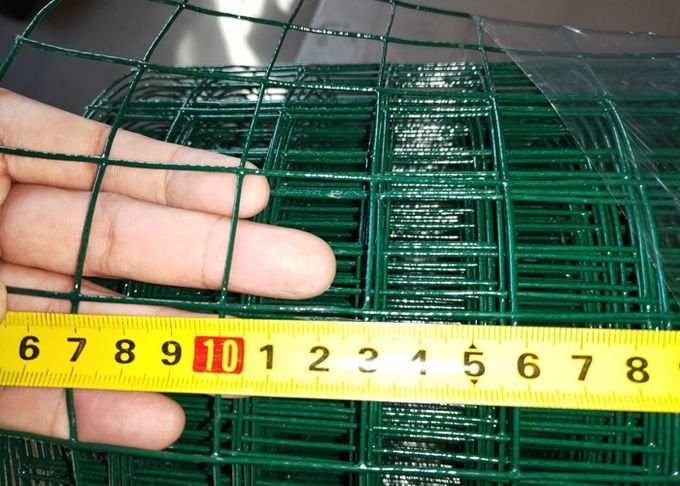

Standard Specification List of PVC Coated Welded Wire Mesh:

Opening (in inch)	Opening (mm)	Wire Diameter (Before/After Coating)
1/4″ x 1/4″	6.35mm x 6.35mm	0.6mm / 0.9mm
1/2″ x 1/2″	12.7mm x 12.7mm	0.8mm / 1.1mm
3/4″ x 3/4″	19.0mm x 19.0mm	0.8mm / 1.1mm
1″ x 1″	25.4mm x 25.4mm	1.5mm / 2.0mm
2″ x 1″	50.8mm x 25.4mm	1.9mm / 2.4mm
2″ x 2″	50.8mm x 50.8mm	1.9mm / 2.4mm
3″ x 2″	75.0mm x 50.8mm	1.9mm / 2.4mm
4″ x 2″	101.6mm x 50.8mm	2.0mm / 2.5mm
4″ x 3″	101.6mm x 50.8mm	2.2mm / 2.6mm
4″ x 4″	101.6mm x 101.6mm	2.2mm / 2.6mm

---

Standard Specification List of Galvanized Welded Fencing Mesh:

Opening (in inch)	Opening (mm)	Wire Diameter (mm)
1″ x 1″	25.4mm x 25.4mm	2.0mm – 3.0mm
1″ x 2″	25.4mm x 50.8mm	2.0mm – 4.0mm
2″ x 2″	50.8mm x 50.8mm	2.0mm – 4.0mm
2″ x 3″	50mm x 75mm	2.0mm – 5.0mm
3″ x 3″	75mm x 75mm	2.0mm – 5.0mm
2″ x 4″	50mm x 100mm	2.0mm – 6.0mm
4″ x 4″	100mm x 100mm	2.0mm – 6.0mm
5″ x 5″	127mm x 127mm	2.0mm – 6.0mm
6″ x 6″	152mm x 152mm	2.0mm – 6.0mm

Conclusion

Welded wire mesh is an essential material in construction, agriculture, and various other industries due to its strength, durability, and flexibility. With different material options and surface treatments available, it can be customized for a wide range of applications. Whether it’s used for fences, reinforcement, or safety barriers, welded wire mesh provides a reliable and long-lasting solution.

If you’re in need of high-quality welded wire mesh, consider Fuhang Wire Mesh, which offers a full range of sizes and specifications to suit your specific needs.
