6×6 welded wire mesh
- Color: Black
- Type: Welded Mesh
- Panel Types: Square Mesh, Rectangular Mesh, Trench Mesh
- Mesh Spacing Options: 100 mm, 200 mm, 300 mm, 400 mm, etc.
- Finish Options: Galvanized or No Surface Treatment
- Condition: New
- Processing Services Available:Bending Welding
- Standard Sheet Sizes: 4.8 m × 2.4 m ,5 m × 2.15 m ,6 m × 2.4 m ,6 m × 2.15 m
- Certification: ISO9001
- Transport Package: Pallets
- Origin: China
- Trademark: BMP
- HS Code: 73144100
- Production Capacity: 2000 pieces / 5 days
- Price: $780 per ton
Category：Product, Welded Wire Mesh
Introduction
6×6 welded wire mesh refers to a metal grid composed of intersecting wires spaced at 6 inches (152 mm) apart both horizontally and vertically. These wires are welded together at their junctions using electric resistance welding, forming a sturdy and uniform mesh panel. It is widely used in construction, industrial, agricultural, and commercial sectors for its balance of strength, coverage, and ease of installation.
📋 6×6 Welded Wire Mesh Specifications
| Wire Gauge (SWG) | Wire Size (W) | Sheet Size (ft) | Weight per Sheet (lbs) | Weight per 100 sq ft (lbs) |
|---|---|---|---|---|
| 4/4 | W4.0/W4.0 | 8′ x 15′ | 67.26 | 56 |
| 6/6 | W2.9/W2.9 | 5′ x 10′ | 20.69 | 41 |
| 6/6 | W2.9/W2.9 | 8′ x 15′ | 48.76 | 41 |
| 8/8 | W2.1/W2.1 | 5′ x 10′ | 14.98 | 30 |
| 10/10 | W1.4/W1.4 | 5′ x 10′ | 9.99 | 21 |
| 10/10 | W1.4/W1.4 | 8′ x 15′ | 23.54 | 21 |
🧾 Additional Details
- Mesh Spacing: 6 inches x 6 inches (152 mm x 152 mm)
- Available Materials: Low-carbon steel (plain or galvanized), Stainless steel (grades 304, 316)
- Surface Finishes: Black (uncoated), Galvanized, PVC-coated
-
Common Applications:
- Concrete reinforcement in slabs, driveways, sidewalks
- Fencing for residential, commercial, and industrial properties
- Animal enclosures and cages
- Partitions and barriers in warehouses and factories
🛠️ Manufacturing Process 6×6 welded wire mesh
The mesh is produced by feeding longitudinal and transverse wires into a resistance welding machine. Electric current fuses the joints without any filler material, ensuring a clean, smooth, and strong weld at every intersection. This process ensures dimensional stability and resistance to unraveling.
📦 Surface Treatment Options
- Black (Plain Steel): Economical but prone to rust without coatings.
- Galvanized Before Weld (GBW): Coated prior to welding—lower corrosion resistance.
- Galvanized After Weld (GAW): Superior corrosion resistance due to post-weld zinc coating.
- PVC-Coated: Adds color and corrosion resistance, suitable for decorative or exposed environments.
- Stainless Steel (304/316): Highest resistance to rust and chemical exposure, ideal for marine and food-grade applications.
🏗️ Common Applications
| Industry | Use Case |
|---|---|
| Construction | Reinforcement in concrete slabs, roadways, foundations |
| Agriculture | Animal cages, poultry enclosures, boundary fencing |
| Industrial | Machine guards, safety barriers, partitions |
| Infrastructure | Erosion control, gabions, retaining wall support |
| Residential | Garden fences, deck skirting, security screens |
✅ Key Advantages
- Uniform Grid Spacing: Predictable strength and stress distribution
- High Tensile Strength: Can withstand heavy loads and pressure
- Time-Saving: Pre-fabricated sheets and rolls reduce labor during installation
- Rust Resistance: Options for galvanized or stainless steel enhance lifespan
- Cost Efficiency: Long-term durability with minimal maintenance
📐 Installation Tips 6×6 welded wire mesh
- Cut using bolt cutters or a metal saw depending on wire gauge.
- Secure panels using U-nails, tie wire, or welding depending on structure.
- Ensure proper overlap and anchoring in concrete for reinforcement applications.
- Use corrosion-resistant types for outdoor or moisture-prone environments.
 |
 |
 |

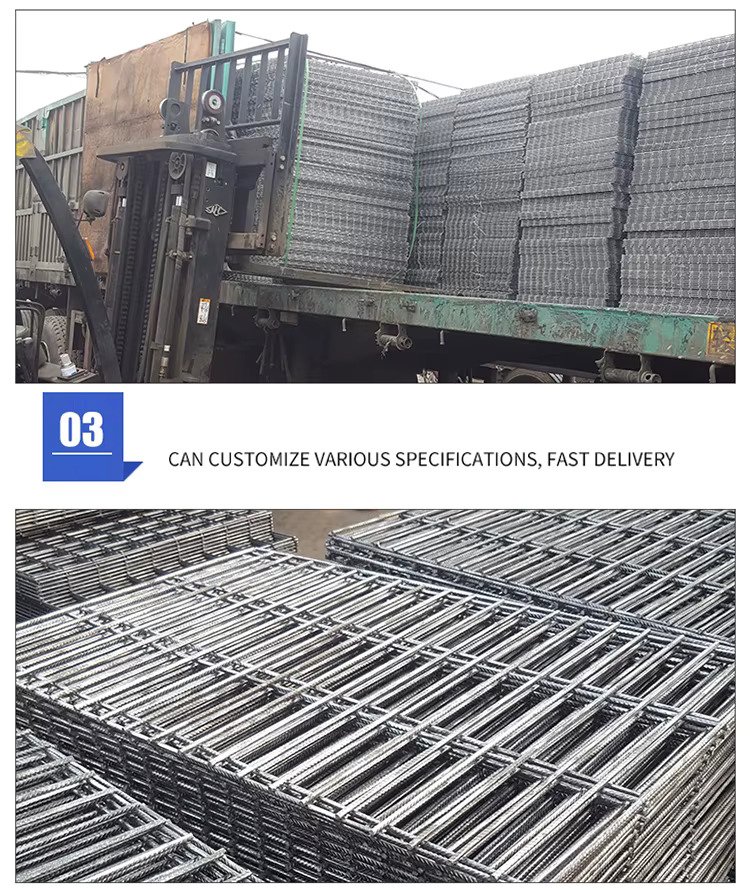

📦 Availability & Supply
- MOQ: Typically 1 roll or 1 bundle
- Packing: Waterproof paper wrap + wooden pallet or steel frame
- Lead Time: 7–15 days depending on quantity
- Production Capacity: 10,000 m² per week (typical for large factories)
💵 Price Range
- Plain Steel: ~$345 – $420 per roll (varies by size and finish)
- Galvanized: ~$420 – $500 per roll
- Stainless Steel: ~$500 – $560+ per roll
Prices fluctuate with material cost and volume ordered.
🌍 Conclusion 6×6 welded wire mesh
6×6 welded wire mesh is a high-performance, cost-effective solution for structural reinforcement, fencing, animal control, and various industrial applications. Its strength, simplicity, and versatility make it a go-to material for engineers, contractors, and fabricators worldwide. Choosing the right gauge and finish ensures that your installation lasts for years in any environment.
