Gabion Mesh Roll 80×100mm 2.7mm – Strong, Galfan-Coated Fencing | BMP
- Aperture size: 80×100 mm
- Wire diameter: 2.7 mm
- Selvedge wire: SWG 8–11
- Lacing wire: SWG 13
- Material: Galvanised wire, Galfan wire, or PVC coated
- Available sizes:
-
1m × 50m
-
2m × 50m
-
1m × 100m
-
- Weight: 1.57 kg/㎡
- Color options: Dark green, gray, black
- Packing:
-
Pre-compacted
-
Plastic wrapped
-
Palletized
-
-
Loading:
-
20′ container – 8,000+ ㎡
-
40′ container – 15,000+ ㎡
-
- HS Code: 7314490000
- FOB Price: USD 2.80/㎡ (for reference)
Introduction
Looking for the toughest and most reliable solution to secure landscapes, prevent erosion, or build stable retaining walls? BMP’s Gabion Mesh Roll with 80×100mm aperture and 2.7mm wire diameter delivers unmatched performance in durability, flexibility, and corrosion resistance—perfect for challenging environments from riverbanks to roadways.
Whether you are constructing military barriers, decorative garden walls, or civil engineering projects, BMP’s Galfan-coated gabion mesh ensures longevity and structural integrity under all conditions.
📌 What Is Gabion Mesh Roll?
Gabion Mesh Roll is a flexible wire mesh system designed to be filled with stones, soil, or other aggregates. It forms strong barriers for a wide variety of applications including slope reinforcement, rockfall protection, and hydraulic structures.
BMP’s version is manufactured with galvanised or Galfan-coated low carbon steel, engineered to withstand harsh climates, water exposure, and mechanical stress.
⚙️ BMP Gabion Mesh Roll Specifications
| Item | Specification Details |
|---|---|
| Product Name | Galvanised Gabion Mesh Roll |
| Brand | BMP |
| Aperture (Mesh Opening) | 80 mm × 100 mm |
| Mesh Wire Diameter | 2.7 mm |
| Selvedge Wire (SWG) | 8, 11 |
| Lacing Wire (SWG) | Commonly 13 |
| Mesh Type | Woven (Double Twisted Hexagonal Mesh) |
| Material Options | Galvanized Steel Wire, Galfan Wire, PVC Coated Wire |
| Surface Treatment | Hot-dip Galvanized / Galfan Coated / PVC Coated |
| Common Roll Sizes | – 1 m × 50 m – 2 m × 50 m – 1 m × 100 m |
| Roll Width | 1 m, 2 m |
| Roll Length | 50 m, 100 m |
| Weight per ㎡ | 1.57 kg/㎡ |
| Color Options | Dark Green, Gray, Black, Beige (on request) |
| Packing Method | – Compacted before packaging – Plastic wrapped – On pallet |
| Container Load Capacity | – 20′ container: 8,000+ ㎡ – 40′ container: 15,000+ ㎡ |
| Typical Applications | Retaining wall, flood control, erosion prevention, slope safety |
| Certifications | ISO Certified, SGS Test Report Available |
| Customized Logo | Yes, MOQ: 4,000 ㎡ |
| Customized Packaging | Yes, MOQ: 4,000 ㎡ |
| Shipping Options | Sea Freight, Land Freight |
| Country of Origin | China |
| HS Code | 7314490000 |
| Estimated FOB Price | USD 2.80 / ㎡ (subject to change based on volume) |
| Galfan Option | Yes, Zinc-Aluminum Alloy Coating for extended life |
| Polymer Coating Option | Yes, for marine/saline or wet conditions |
| Installation Accessories | Lacing wire, stiffeners (available on request) |
✅ ⭐ Positive Feedback from Qatar
“We ordered over 10,000㎡ of BMP’s Gabion Mesh Rolls for a coastal reinforcement project in Doha. The quality and corrosion resistance are excellent—even near seawater. Very satisfied with the performance and service!”
– Ali H., Civil Engineering Manager, Qatar
Available types
🔧 Applications of Gabion Mesh Roll
- ✅ Retaining walls for highways and railways
- ✅ River training and embankment stabilization
- ✅ Rockfall barriers and mountain slope protection
- ✅ Coastal and bridge protection
- ✅ Landscape decoration and garden walls
- ✅ Soil erosion and water control
🎯 Key Benefits of BMP Gabion Mesh Roll
- High Strength and Toughness – Woven or welded mesh resists high tension and load.
- Corrosion-Resistant Galfan Coating – Offers longer service life than standard galvanizing.
- Flexible Installation – Ideal for irregular ground, slopes, or curves.
- Easy to Transport and Store – Roll format and compact packing reduce space and cost.
- Versatility – Works in both civil engineering and landscaping.
📦 BMP Packaging & Delivery
- Gabion Mesh Rolls are compacted before packaging.
- Each roll is securely wrapped with plastic film to prevent moisture.
- Palletized to avoid deformation during transport.
- 20’ containers hold over 8,000㎡, 40’ containers hold more than 15,000㎡.
- Fast processing time and quick refunds for orders under $1,000.
📋 ✔️ Conditions to Consider Before Use
- Ensure soil base is stable before installation.
- For saline or marine exposure, choose polymer-coated Galfan wire.
- In high-rainfall zones, allow for adequate drainage behind the structure.
- Avoid cutting or bending the wire mesh excessively to preserve strength.
- For long slopes or heavy loads, use reinforced mesh types.

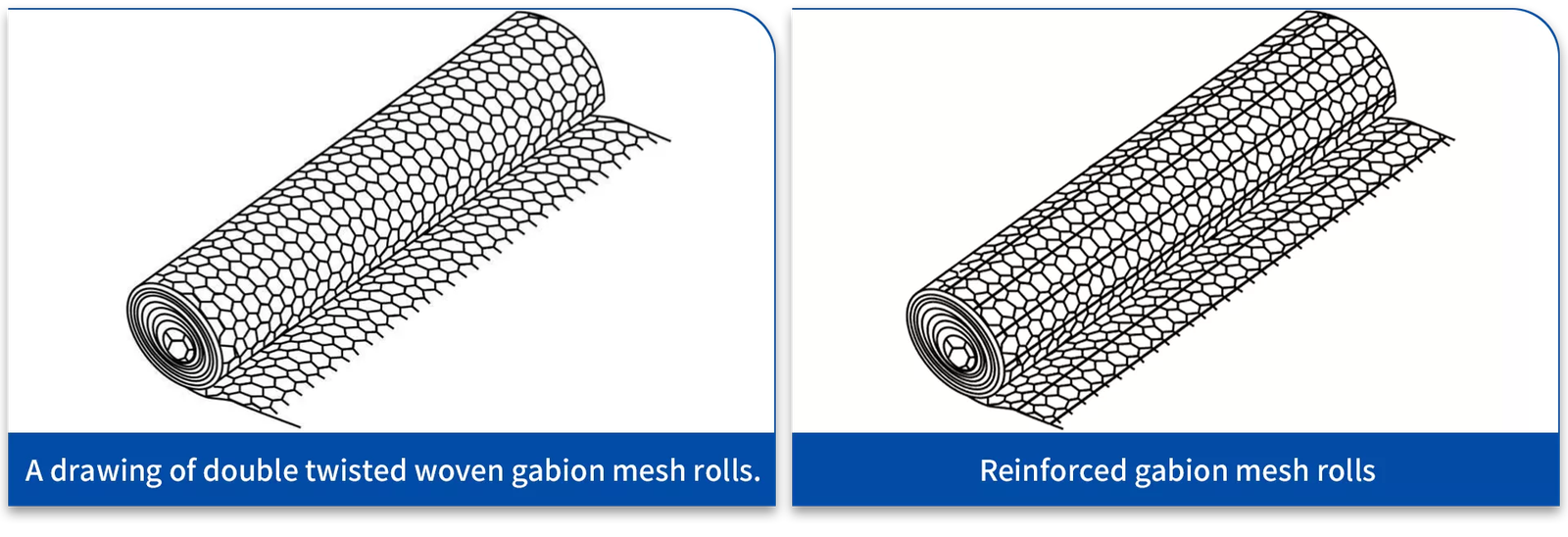

🛠️ Types of Gabion Mesh Rolls Offered by BMP
🔹 Woven Gabion Mesh Rolls
- Double-twisted hexagonal mesh
- Mesh size: 80×100 mm, 100×120 mm
- Great for flexibility and adapting to terrain
-
🔹 Reinforced Gabion Mesh Rolls
- Enhanced tensile strength for steep slopes
- Best for roads and bridge protection
📚 BMP FAQs on Gabion Mesh Rolls
Q1: What makes Galfan better than regular galvanizing?
A1: Galfan is a zinc-aluminum alloy that provides superior corrosion resistance, especially in coastal or humid environments.
Q2: Can I customize the packaging and logo?
A2: Yes. MOQ for customized logo or packaging is 4,000㎡.
Q3: What’s the difference between woven and welded mesh?
A3: Woven mesh offers more flexibility, while welded mesh is rigid and ideal for flat surfaces.
Q4: Does BMP support international shipping?
A4: Absolutely. We offer sea and land freight options globally.
Q5: Do you provide technical support?
A5: Yes. We offer CAD drawings, 3D models, and full installation guidance.
🎯 Conclusion: Why Choose BMP’s Gabion Mesh Roll?
BMP’s Gabion Mesh Roll 80×100mm with 2.7mm wire offers exceptional strength, weather resistance, and versatility. Backed by years of expertise, modern machinery, and stringent quality control, we ensure every roll meets your standards and survives the toughest challenges.
Whether you’re reinforcing a riverbank, building a retaining wall, or safeguarding infrastructure, BMP is your trusted partner in durable wire mesh solutions.
📞 Contact BMP today to get a quote, receive samples, or request technical support.
