Galvanized Wire Rope Net – 8mm Rope, 300×300mm Mesh | Strong Rockfall Fence by BMP
- Feature: Easily Assembled
- Wire Diameter: 5.00mm-12.00mm
- Color: Primary Colors
- Packaging: Pallet
- Certification: ISO9001
- Transport Package: In Roll
- Specification: ASTM, ISO9001:2008
- Trademark: BMP
- Origin: Hengshui City, Hebei Province, China
- HS Code: 7314490000
- Production Capacity: 2000 Square Meters/Day
- Price: USD 7.18–12.98/m²
Category：Product, RockFall Netting
Introduction
BMP’s Galvanized Wire Rope Net is a premium barrier solution designed to prevent rockfalls, landslides, debris flow, and even snow avalanches. It performs exceptionally well in both active and passive protection systems. Made with hot-dipped galvanized 8 mm steel wire rope and often combined with 2.2 mm chain link mesh, this system ensures reliable protection in harsh terrain and extreme conditions.
With its strong tensile strength, corrosion resistance, and modular flexibility, BMP’s Galvanized Wire Rope Net has become a trusted choice in infrastructure, road, and mining projects across the globe.
🧷 🧰 Key Components of BMP’s Galvanized Wire Rope Net System

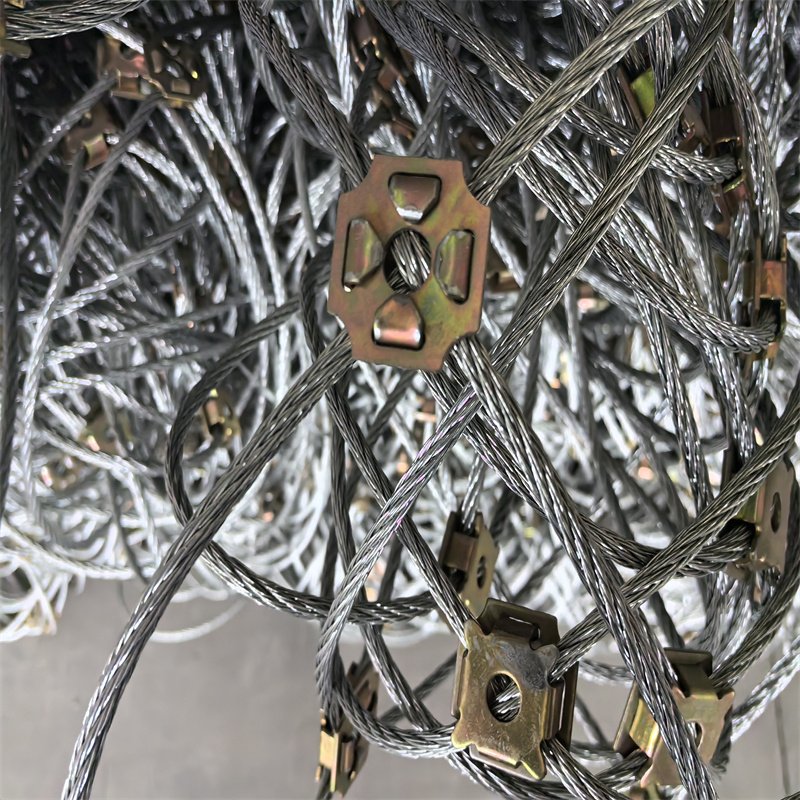

🔩 Galvanized Wire Rope Net – The Backbone of the System
- Woven from 8 mm steel wire rope
- Mesh size: 300 mm × 300 mm
- High tensile strength and load-bearing capacity
- Resists corrosion and deformation
🔗 Chain Link Fence – For Fine Debris Control
- Made of 2.2 mm hot-dip galvanized steel
- Mesh size: 50 mm × 50 mm
- Blocks small rocks and gravel
- Complements wire rope net in loose slope conditions
🪢 Wire Rope Anchor – Stability Reinforced
- Made from steel wire rope
- Stronger and more flexible than concrete anchors
- Fixes net to mountain firmly
💪 Supporting Rope – For Pressure Distribution
- Diameter: 12 mm or 16 mm
- Installed along wire rope net
- Distributes force and enhances structural support
🔧 Sewing Rope – Seamless Joint Protection
- Connects neighboring mesh sections
- 8 mm steel wire rope
- Prevents stone leaks at joints
📋 ✅ Complete Specifications Table (Original Size Maintained)
| Component | Specification |
|---|---|
| Material | Hot dipped galvanized steel wire rope |
| Steel Wire Rope Dia. | 8 mm |
| Wire Rope Mesh Size | 300 mm × 300 mm |
| Chain Link Mesh Dia. | 2.2 mm |
| Chain Link Mesh Size | 50 mm × 50 mm |
| Supporting Rope Dia. | 12 mm or 16 mm |
| Sewing Rope Dia. | 8 mm |
- HS Code: 73144900
- Estimated Price: USD 3.85–5.50/m²

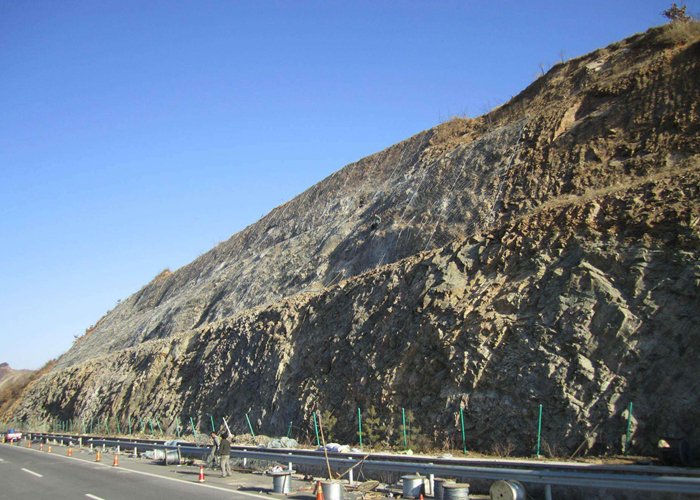

🌐 🏔️ Applications of Galvanized Wire Rope Net
Galvanized Wire Rope Net protects infrastructure, highways, railways, and residential zones near unstable slopes. BMP’s net is especially suited for:
- Mountainous roads vulnerable to rockfall
- Slopes with mixed large and small stones
- Debris flow and landslide zones
- Snow avalanche control in alpine regions
- Temporary or permanent geological hazard control systems

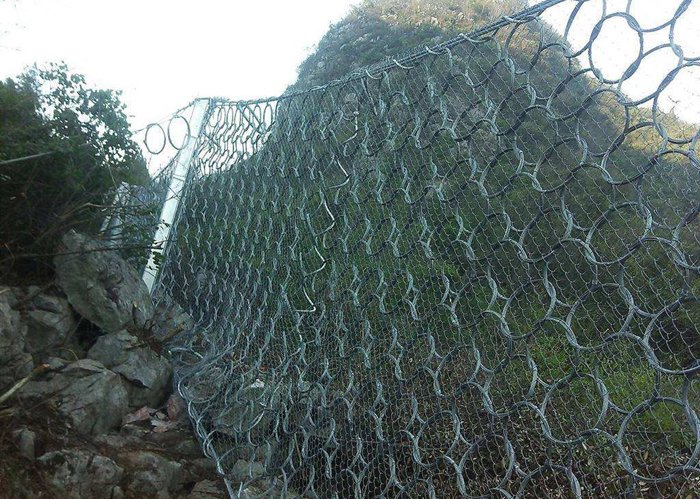

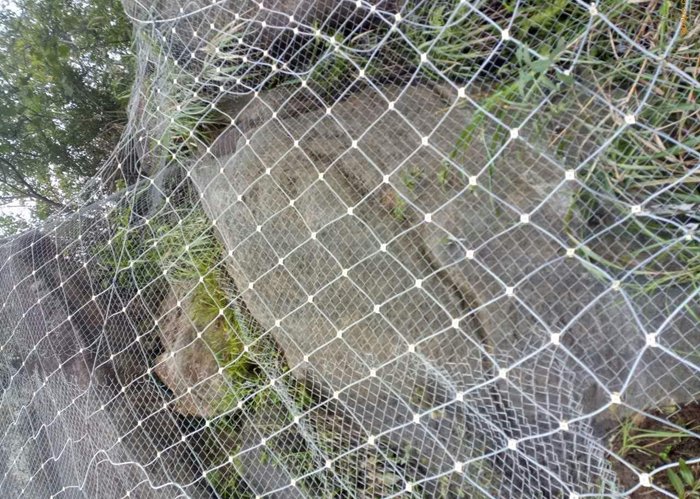

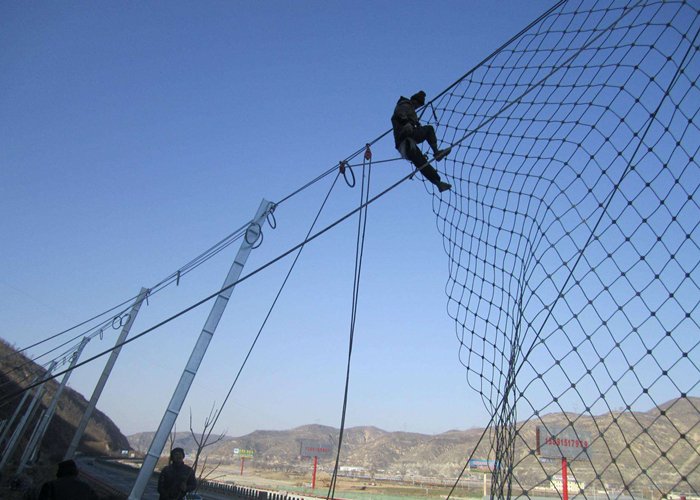

BMP offers both active systems (attached directly to slopes) and passive systems (installed as catch barriers at slope bases).
🌟 💡 Benefits of Using BMP’s Galvanized Wire Rope Net
- 🔧 High Strength: Resists high-impact forces from falling rocks
- 💧 Corrosion Resistance: Hot-dip galvanized finish resists rust
- 🧱 Modular Flexibility: Combine with chain mesh or hex mesh
- 🌱 Environmentally Friendly: Visual integration with natural terrain
- 🧩 Easy Installation: Pre-assembled bundles simplify on-site work
- 🔄 Durable Performance: Long-lasting under harsh environmental conditions
📦 📦 Packaging & Delivery – BMP’s Commitment to Safe Logistics
- Delivered in rolls, secured with steel straps
- Covered in waterproof woven bags
- Bundled with labeled tags for quick identification
- Steel pallet option available for added stability
- Custom packaging on request
- Normal lead time: 7–15 working days
- Minimum order: 500 m²
🗣️ 💬 Feedback from Qatar: A Reliable Partner on Rocky Terrain
“We used BMP’s Galvanized Wire Rope Net for a critical mountain-side highway in Qatar. The installation was smooth, the materials were top-grade, and it handled the first heavy rains and minor rockslides with no issue. BMP’s team provided solid tech support, and we will absolutely use this product again.”
— Project Manager, Highway Reinforcement, Qatar
🧠 📌 FAQs – BMP Galvanized Wire Rope Net
Q: Can the net resist large stone impacts?
A: Yes, the 8 mm wire rope net absorbs large impacts and prevents rockfall.
Q: Is it resistant to rust?
A: Absolutely. Hot-dipped galvanized coating ensures long-term corrosion protection.
Q: Can I combine it with other mesh types?
A: Yes. For loose slopes, use with 2.2 mm chain link or hex mesh to stop smaller rocks.
Q: How long will it last?
A: Typically 30+ years with minimal maintenance, even in coastal or humid climates.
Q: Is installation difficult?
A: No. Pre-rolled and labeled nets save time and labor.
📋 📌 Important Conditions to Consider
- ✅ Confirm soil strength for anchor performance
- ✅ Use chain link mesh for slopes with loose, small rocks
- ✅ Avoid installation during heavy rains or freeze–thaw cycles
- ✅ Monitor tension and anchorage yearly for long-term safety
- ✅ Select correct supporting/sewing rope diameters for impact levels
🧱 📌 Technical Highlights Summary (Bullet Points)
- Material: Hot dipped galvanized steel wire rope
- Rope diameter: 8 mm
- Mesh size: 300 mm × 300 mm
- Chain link mesh: 2.2 mm wire, 50 mm × 50 mm
- Supporting rope: 12 mm or 16 mm
- Sewing rope: 8 mm
- HS Code: 73144900
- Price: USD 3.85–5.50/m²
🏁 🔚 Conclusion: Galvanized Wire Rope Net from BMP – Your Slope’s Strongest Defense
BMP’s Galvanized Wire Rope Net is a full-spectrum slope protection solution engineered for durability, flexibility, and top performance. With high-impact resistance, corrosion-proof construction, and flexible configuration options, it ensures both public safety and infrastructure integrity.
Whether your project is in the mountains of Qatar or the highways of Southeast Asia, BMP’s wire rope net system delivers peace of mind and proven reliability.
