Stainless Steel Green Facade
- Material: High-grade AISI 304, 316, or 316L stainless steel.
- Cable Structure: 7×7 or 7×19 configurations.
- Wire Rope Diameter: Ranges from 1.2 mm to 5.0 mm.
- Mesh Aperture Sizes: Available from 20 mm × 20 mm up to 200 mm × 200 mm.
- Mesh Shape: Diamond (rhombus) pattern with a standard 60° angle.
- Connection Types: Ferrule or knotted interwoven mesh.
- Surface Treatments: Options include natural finish, black oxide, or green powder coating.
- Tensile Strength: Approximately 100,000–110,000 PSI.
- Breaking Load: Varies by configuration, e.g., 676 lbs for 5/64″ (2.0 mm) wire.
- HS Code: 7314140000.
Introduction
BMP, a leading stainless steel green facade factory, provides eco-conscious architects and builders with a durable and beautiful solution: Stainless Steel Rope Mesh Green Wall systems.

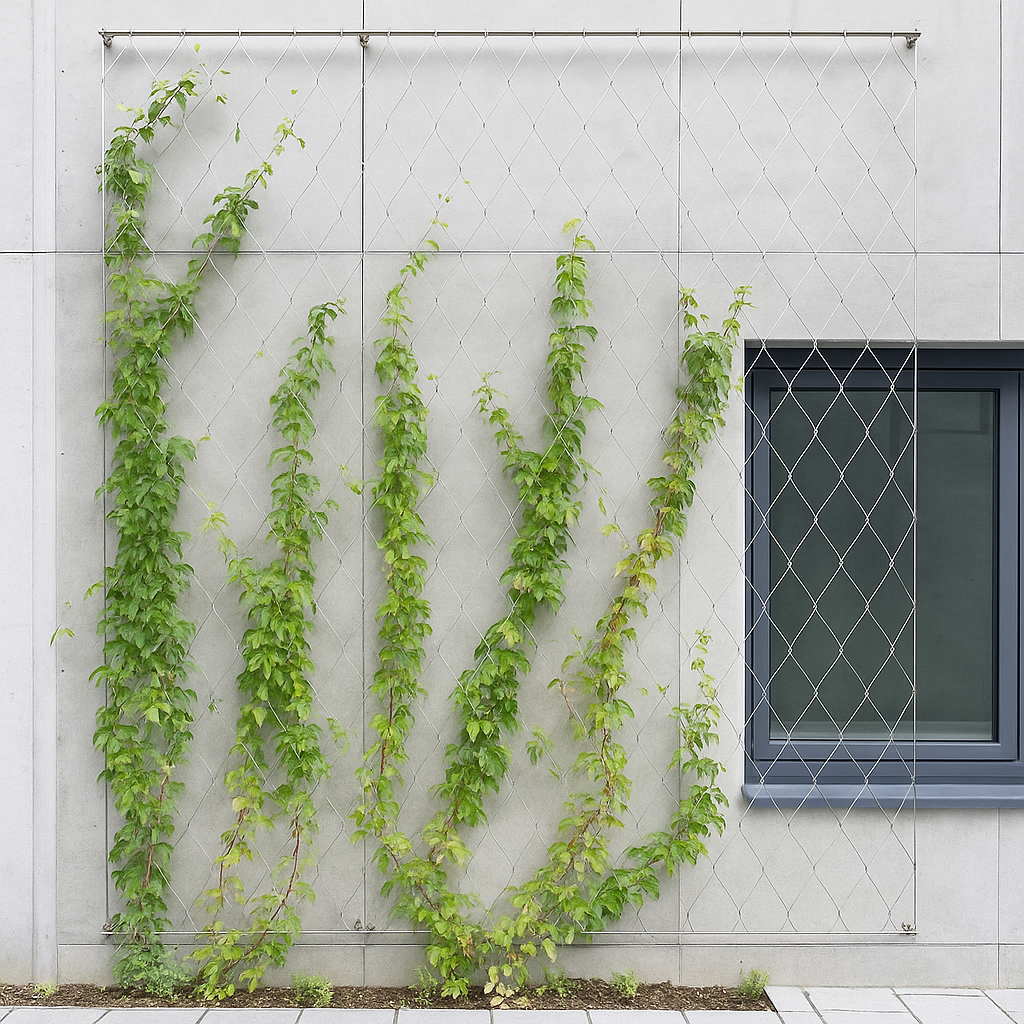

This green wall mesh is made of inter-woven or ferrule stainless steel cables, forming a diamond grid to support climbing plants. It is used to create vertical gardens, improve energy efficiency, reduce pollution, and transform concrete facades into natural landscapes.
Stainless steel green facades are becoming a global trend in urban greening. They work in private homes, commercial complexes, and public buildings.
🛠 BMP Stainless Steel Green Facade Specifications at a Glance
- Mesh Type: Diamond
- Material: AISI 304 / 316 stainless steel
- Cable Structure: 7×7 and 7×19
- Wire Diameter: 1.2 mm – 3.2 mm
- Mesh Aperture: 20 × 20 mm to 76 × 76 mm
- Standard Mesh Angle: 60° – 90°
- Finish: Natural, black oxide, or green powder coated
- Usage Life: Over 30 years
- Tensile Strength: 100,000–110,000 PSI
📐 Complete Specification Table
| Code | Rope Construction | Rope Diameter | Aperture (mm) | HS Code | Price (USD/m²) |
|---|---|---|---|---|---|
| SSGW-01 | 7 × 7 | 1.2 mm | 25 × 25 | 7314140000 | $18.50 |
| SSGW-02 | 7 × 7 | 1.6 mm | 38 × 38 | 7314140000 | $17.80 |
| SSGW-03 | 7 × 7 | 2.0 mm | 51 × 51 | 7314140000 | $16.80 |
| SSGW-04 | 7 × 7 | 2.4 mm | 20 × 20 | 7314140000 | $19.50 |
| SSGW-05 | 7 × 7 | 3.2 mm | 76 × 76 | 7314140000 | $15.50 |
| SSGW-06 | 7 × 19 | 3.2 mm | 60 × 60 | 7314140000 | $15.80 |
| SSGW-07 | 7 × 19 | 1.6 mm | 51 × 51 | 7314140000 | $17.60 |
| SSGW-08 | 7 × 19 | 1.2 mm | 25 × 25 | 7314140000 | $18.20 |
🌱 Applications of Stainless Steel Green Facade
- Urban vertical gardens
- Residential or office building facades
- Public parks, libraries, and museums
- Airport and transport terminals
- Highway noise barrier greening
- School or hospital eco-walls
- Green commercial signage
🌟 Benefits of BMP Stainless Steel Green Facade
- 🏞 Environmental Friendly: Helps plants grow vertically, improving air quality and reducing CO₂.
- 💧 Weather Resistant: Withstands rain, snow, sunlight, and strong winds.
- 🔒 Durable: Long service life over 30 years without rust or breakage.
- 🔥 Thermal Regulation: Reduces building heat in summer and retains warmth in winter.
- 🎨 Anti-Graffiti: Covers building walls and blocks paint/vandalism.
- 🍃 Dust Absorption: Green walls absorb nearby dust and exhaust fumes.
- 🧱 Structural Flexibility: Fits any wall, curve, or shape.
- 🌿 Visual Harmony: Creates a seamless connection between plants and architecture.
📦 Packing & Delivery
- Mesh packed in rolls or panels
- Inner plastic wrap to prevent scratches
- Outer sealed in fumigation-free plywood boxes
- Labels indicate mesh code, size, weight, and batch
- Support custom sizes and container shipment
💡 Conditions to Consider Before Choosing Green Facade Mesh
- ✅ Climbing plant species (ivy, wisteria, vines)
- ✅ Wall direction (south-facing walls grow faster)
- ✅ Installation frame type (steel tube or wire rope grid)
- ✅ Environment (coastal, urban, dry, wet)
- ✅ Rope size vs. mesh opening balance
- ✅ Anchoring structure strength
💬 FAQ – Stainless Steel Green Facade
Q1: What wire thickness is best for green walls?
A1: 1.5 mm or 2.0 mm is most common.
Q2: Can BMP mesh be installed on existing buildings?
A2: Yes. It can mount to new or existing surfaces easily.
Q3: Does the mesh need maintenance?
A3: No, it’s rustproof and maintenance-free.
Q4: Can I get custom shape panels?
A4: Yes. BMP offers custom cutting and shaping.
Q5: Is black oxide finish available?
A5: Yes. Available in black, natural silver, or green.
🌍 Customer Feedback – Qatar Project
“We installed BMP’s stainless steel green facade mesh for our commercial tower in Doha. The product looks stunning and the plants climbed beautifully within two months. It’s strong, shiny, and flexible. Very satisfied with the quality and delivery.”
— Mr. Khaled A., Doha, Qatar
✅ Conclusion
BMP’s Stainless Steel Green Facade is more than a mesh—it’s a living wall system that brings architecture and nature together. With flexibility, durability, rust resistance, and beauty, BMP mesh supports green innovation in all types of projects.
From skyscrapers to schools, BMP gives you an engineered mesh system that helps the planet and transforms gray into green.
